Atlas Equipment 9KBPX Baseplate 2-Post Lift 9,000 lb. Capacity

Call for Price

Add to wishlist Add to compare

Categories: 2 Post Lifts, Lifts Brand: Atlas

Product information

brand	ATLAS
Post Type	2 Post Lift

Description

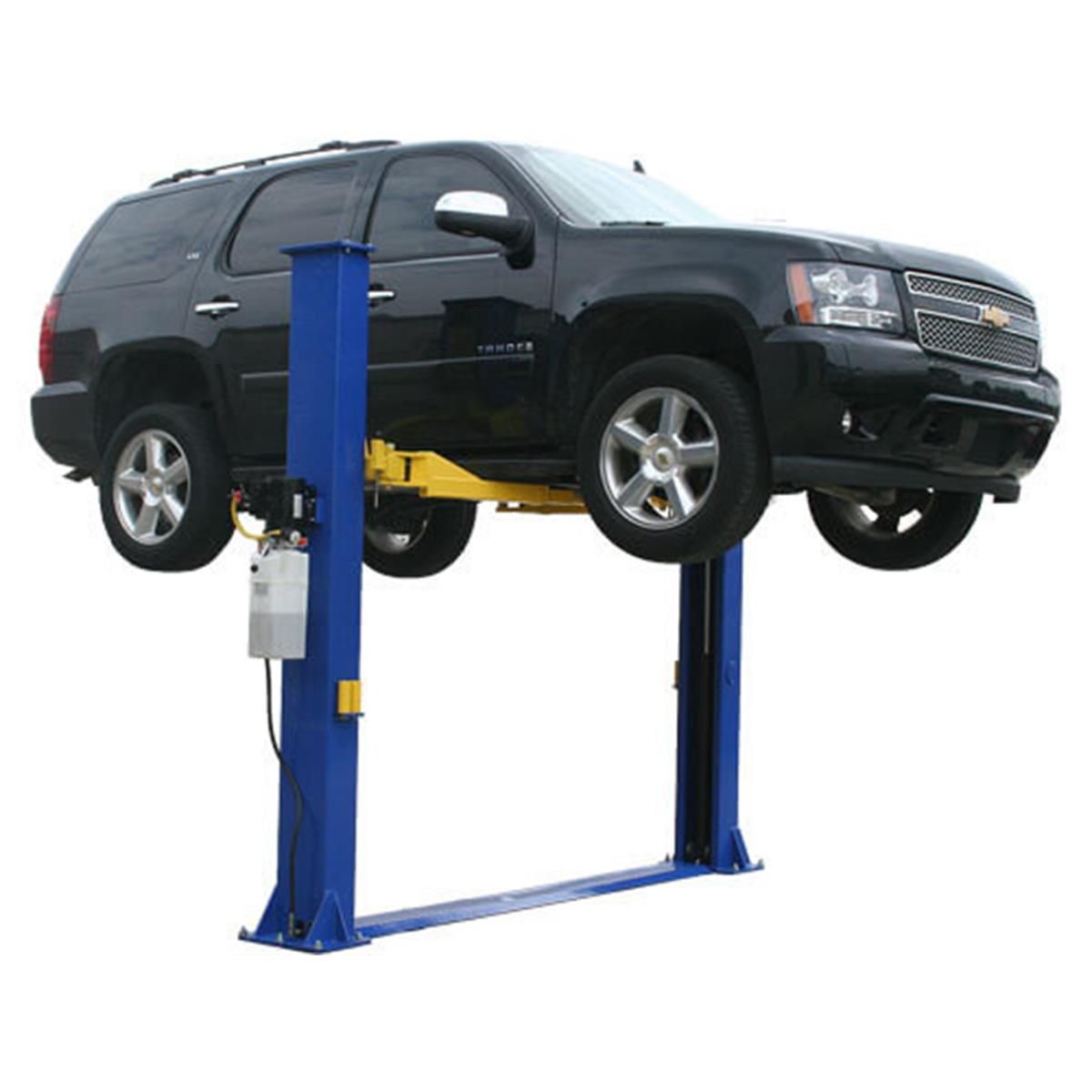

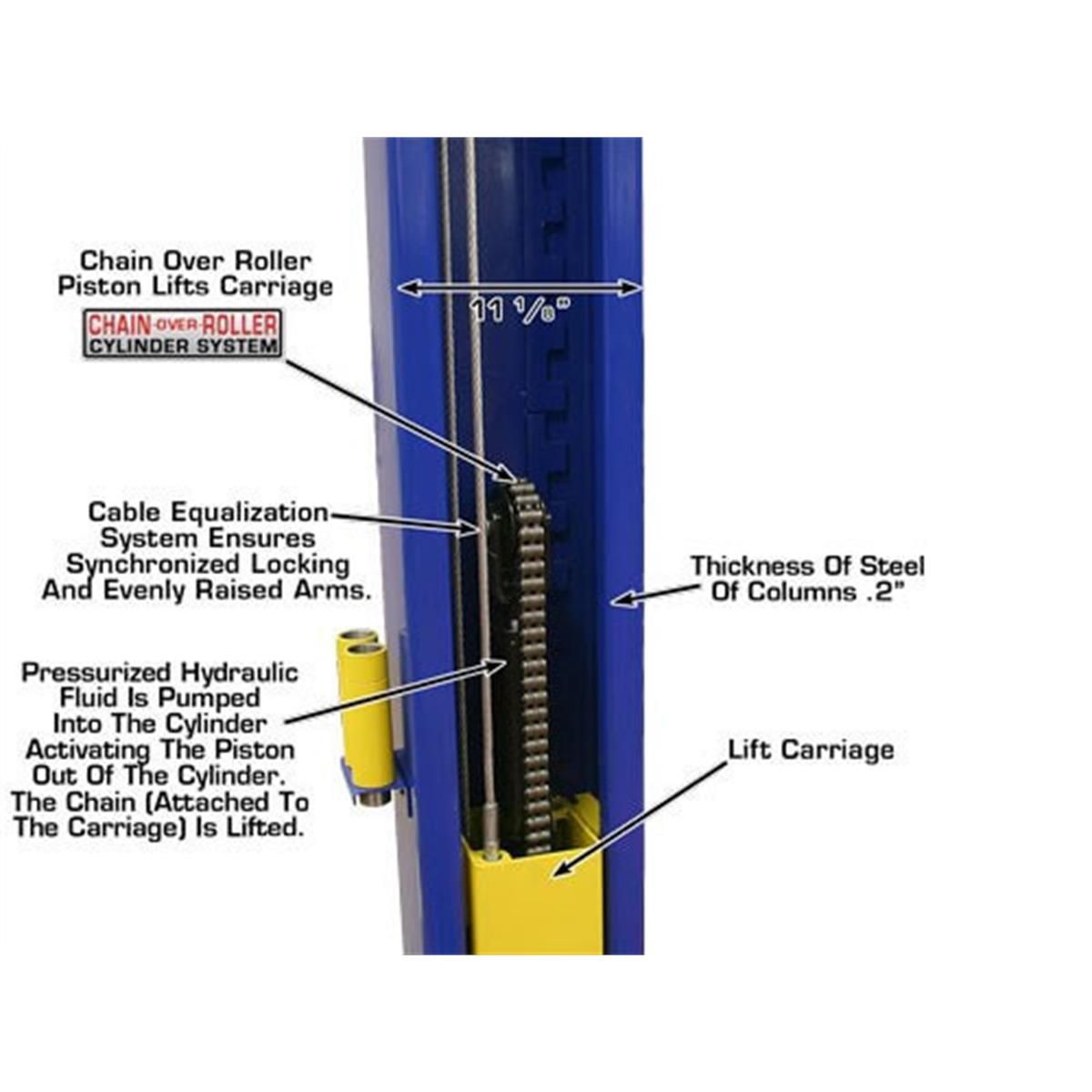

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 1/2" (9 feet 3 1/2 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX "chain over roller" lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for "Mr. Homeowner" or small commercial shop looking to service cars, SUV's and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Features

9,000 lb. Capacity
Baseplate, Open-Top Style Lift
Designed For Low Ceiling Clearance ‐ 9' 3 1/2" Columns

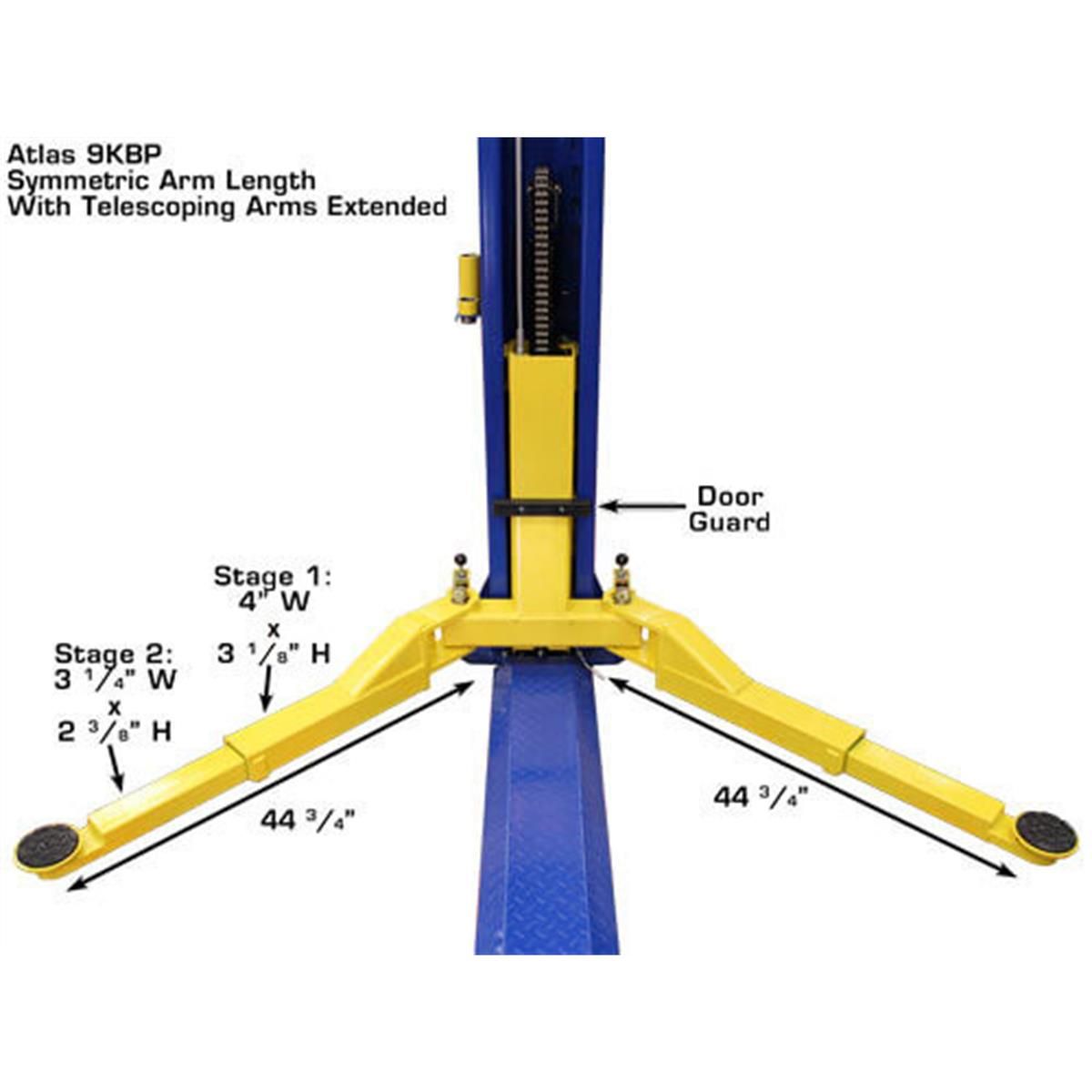

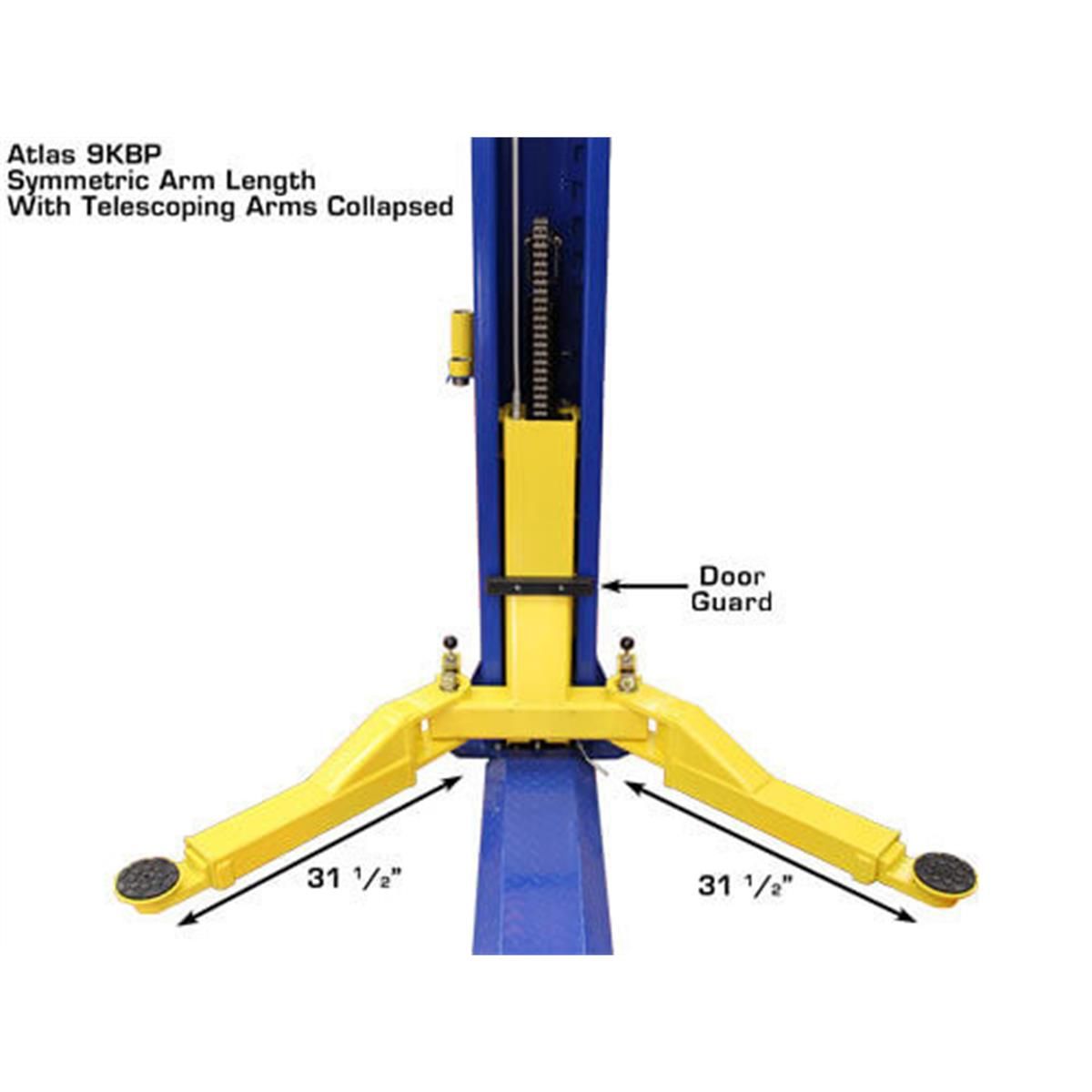

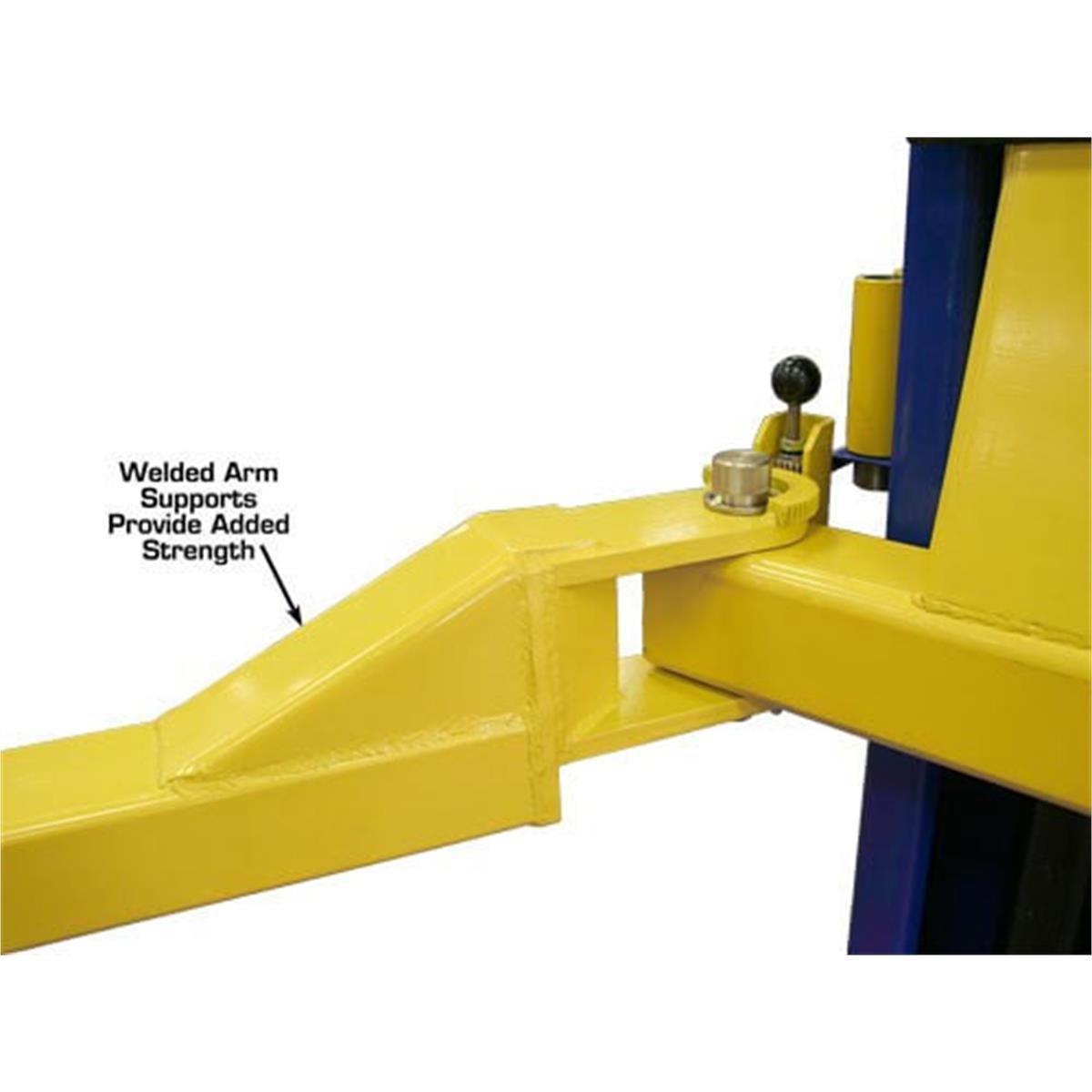

Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System (SLS)

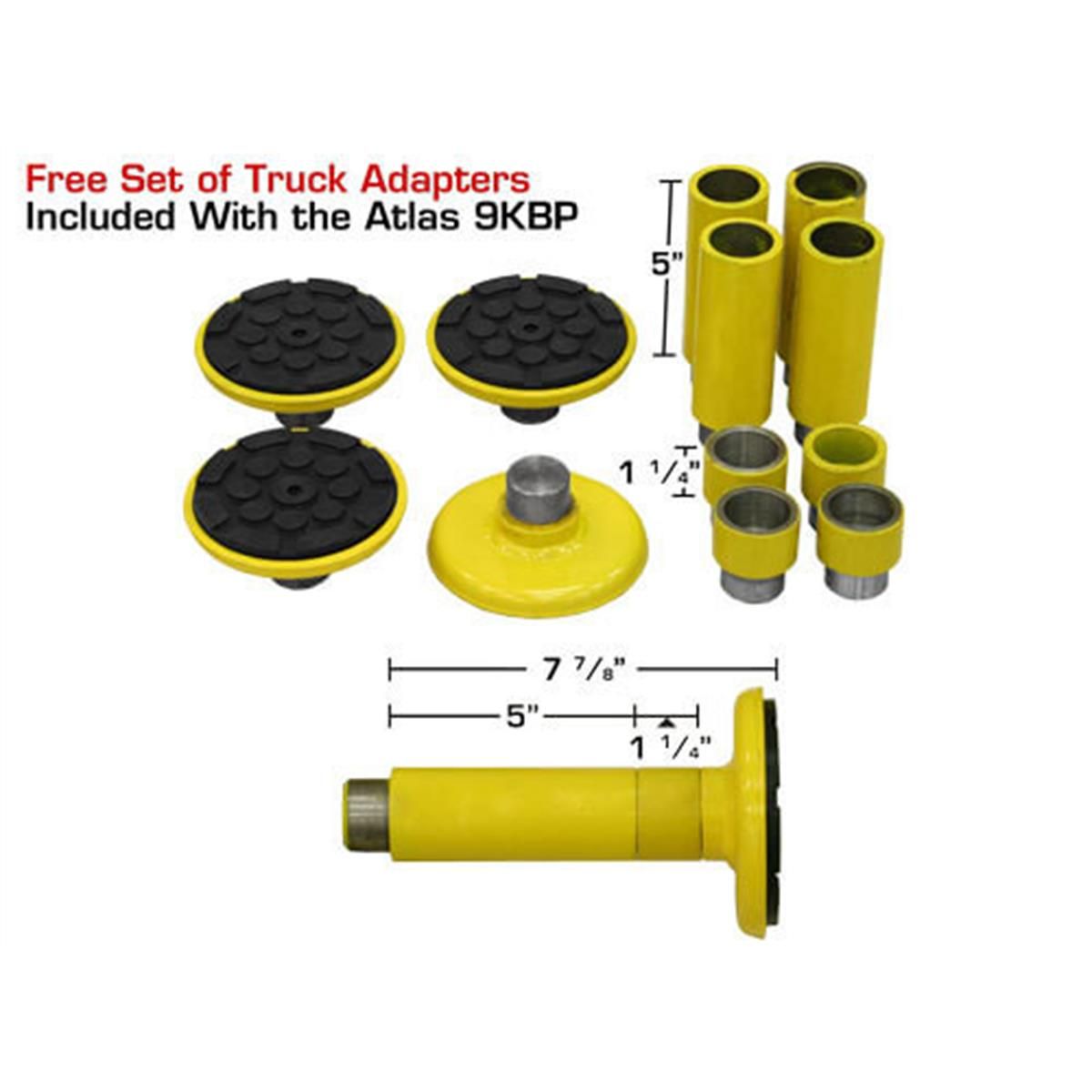

Free 8 Piece Truck Adapter Set

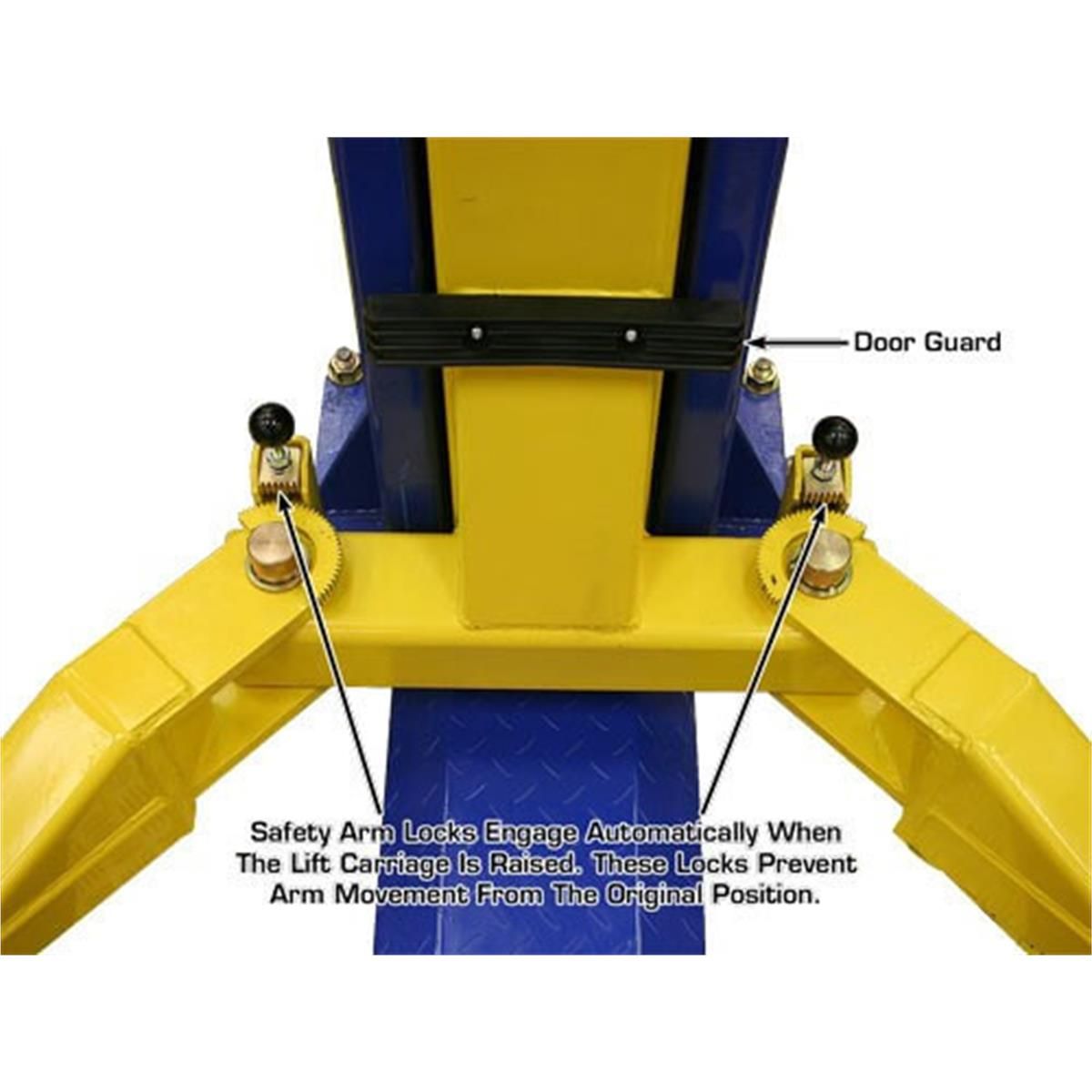

Automatic Arm Restraints
Dual Point Lock Release

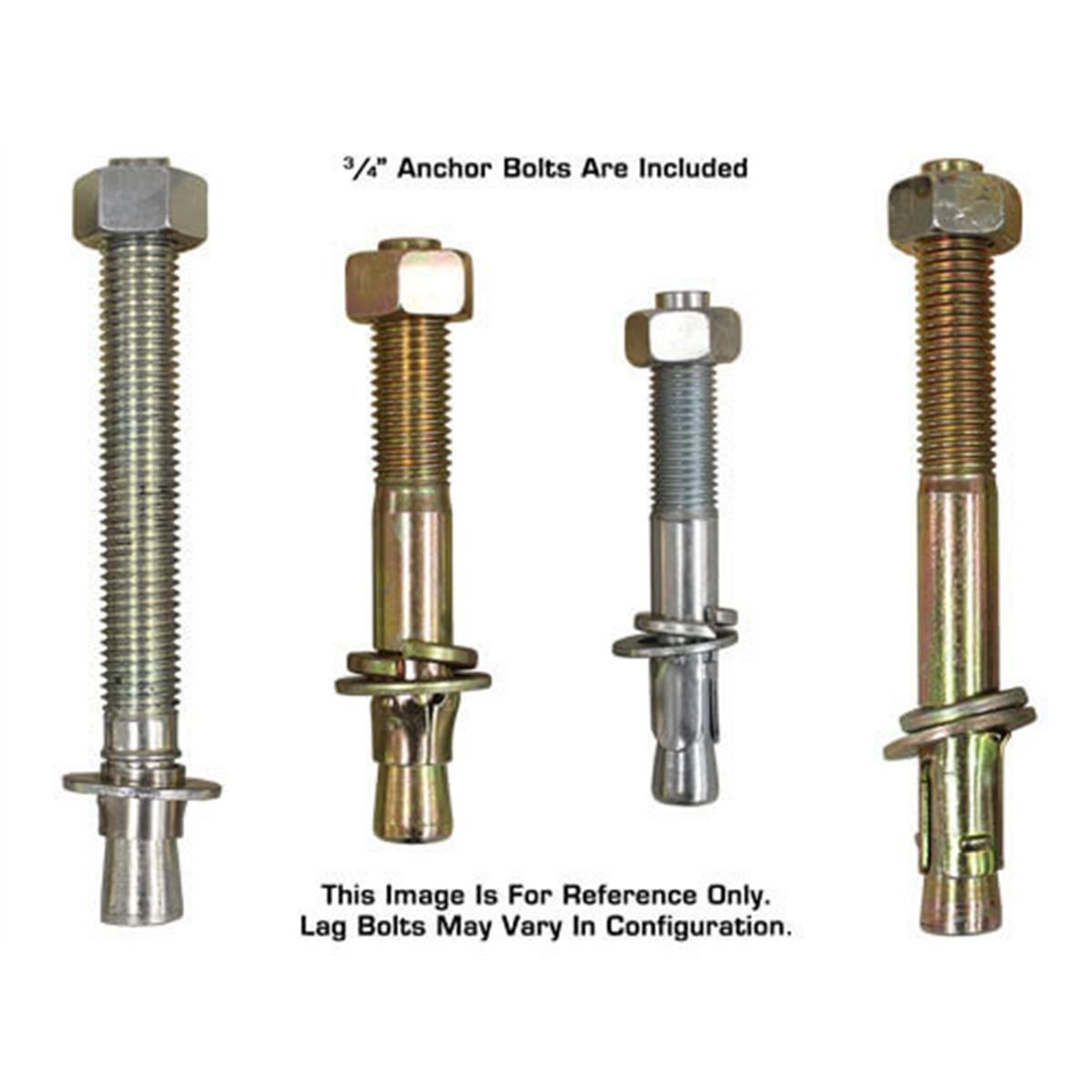

Mounting Hardware Included
Shipping Weight: 1,400 lbs.
2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

Description

Description

Proposition 65 Warning for California Consumers icon

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Specifications:

Capacity: 9,000 LB.

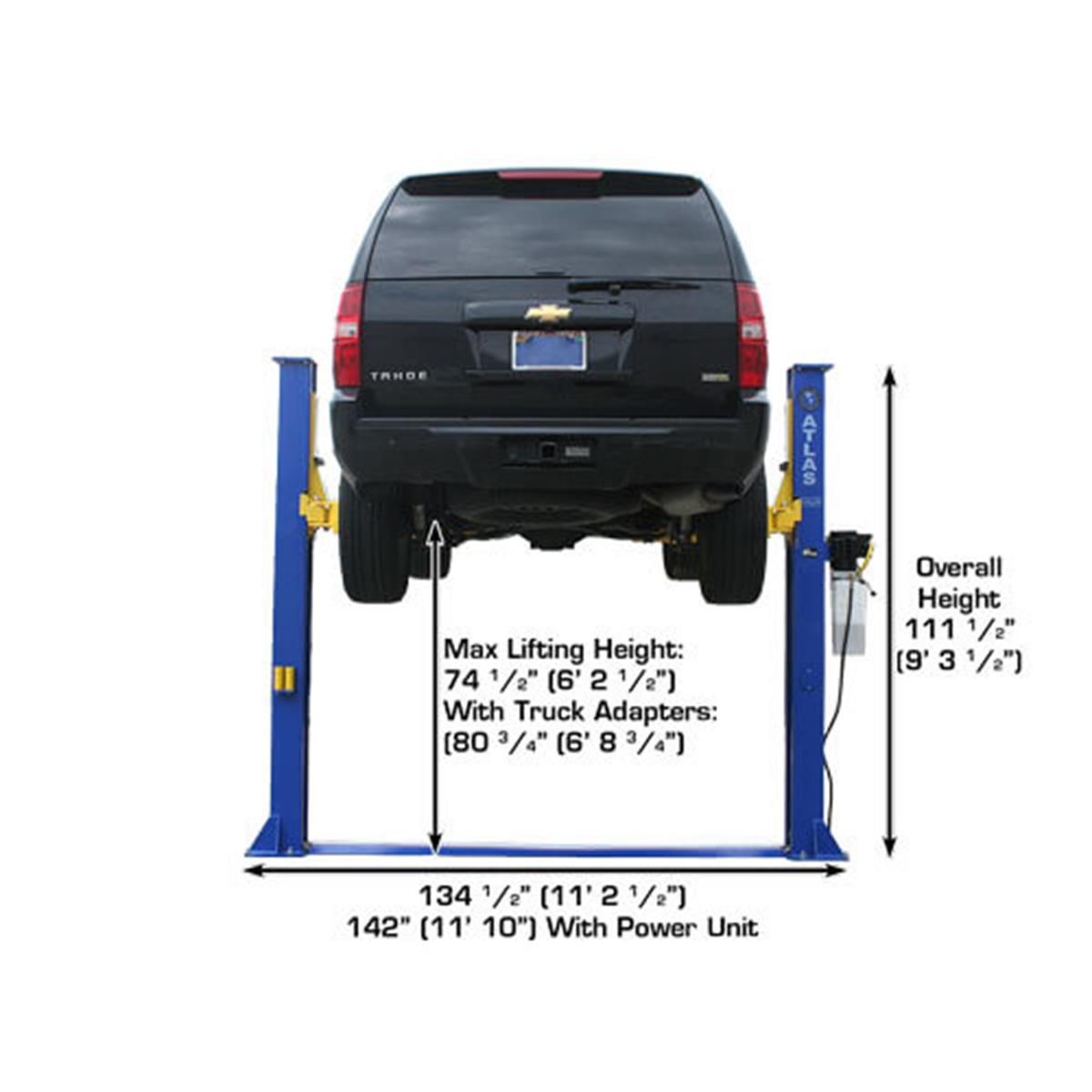

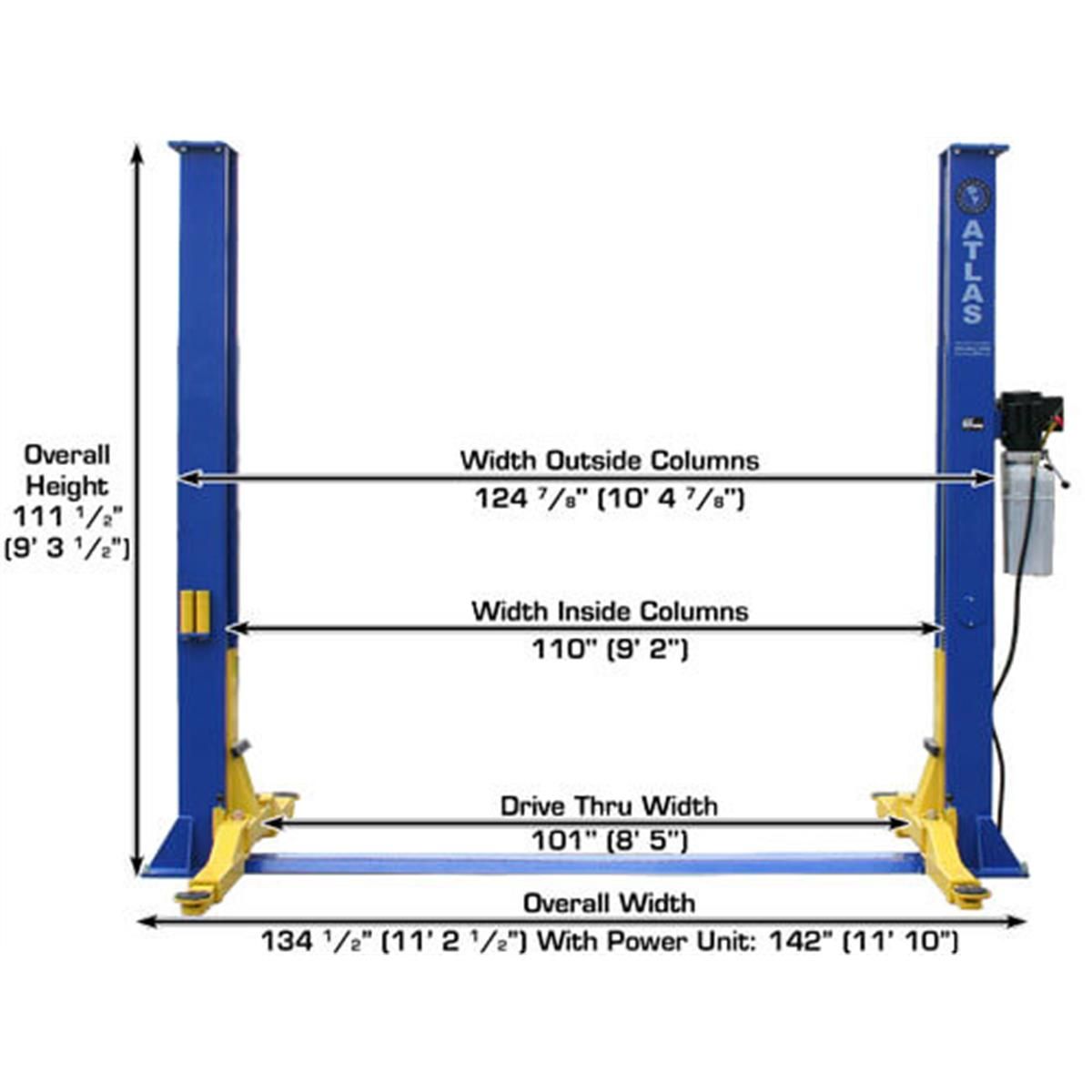

Overall Floor Width: 134 1/2″ (11′ 2 1/2″)
Outside Column to Outside Column: 124 7/8″ (10′ 4 7/8″)

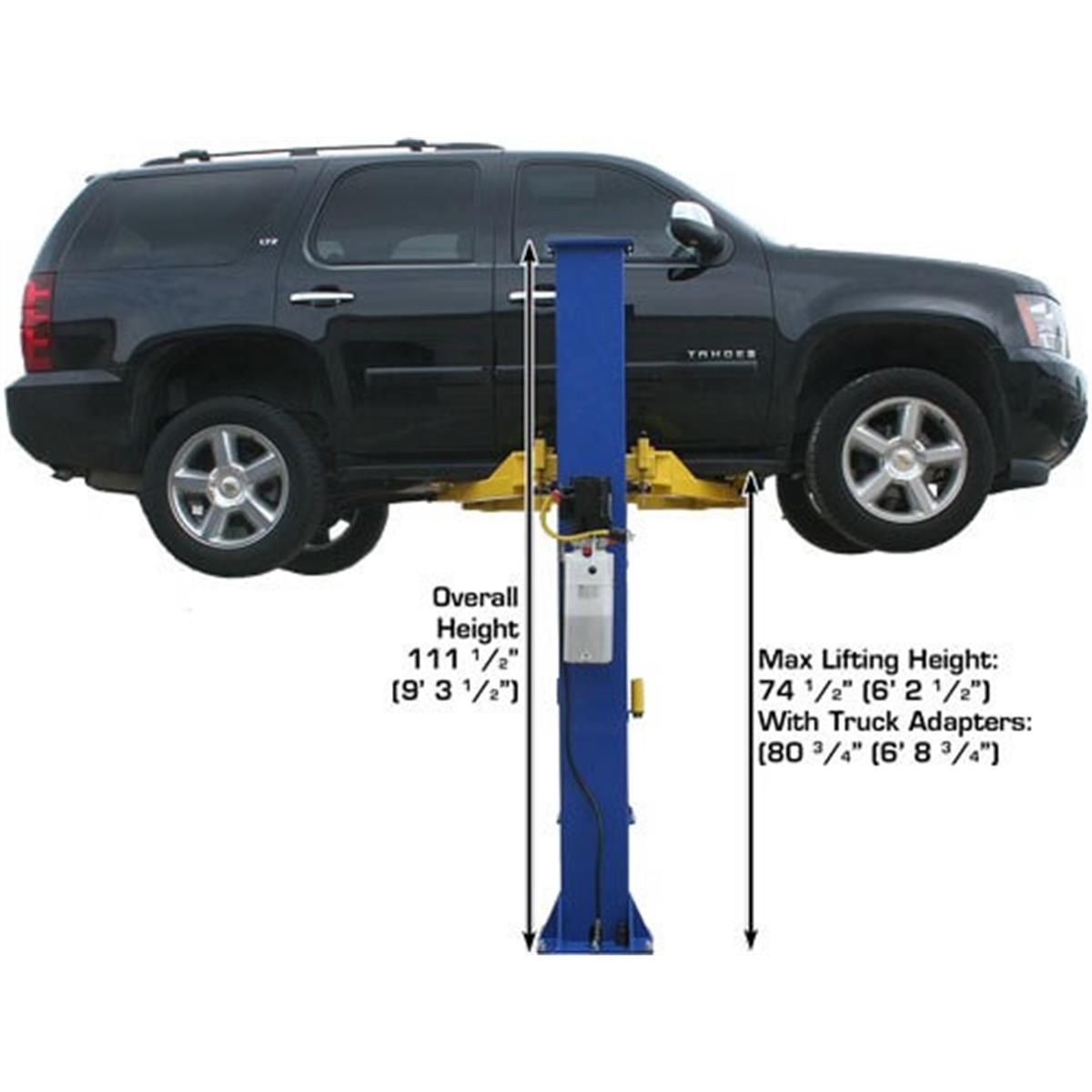

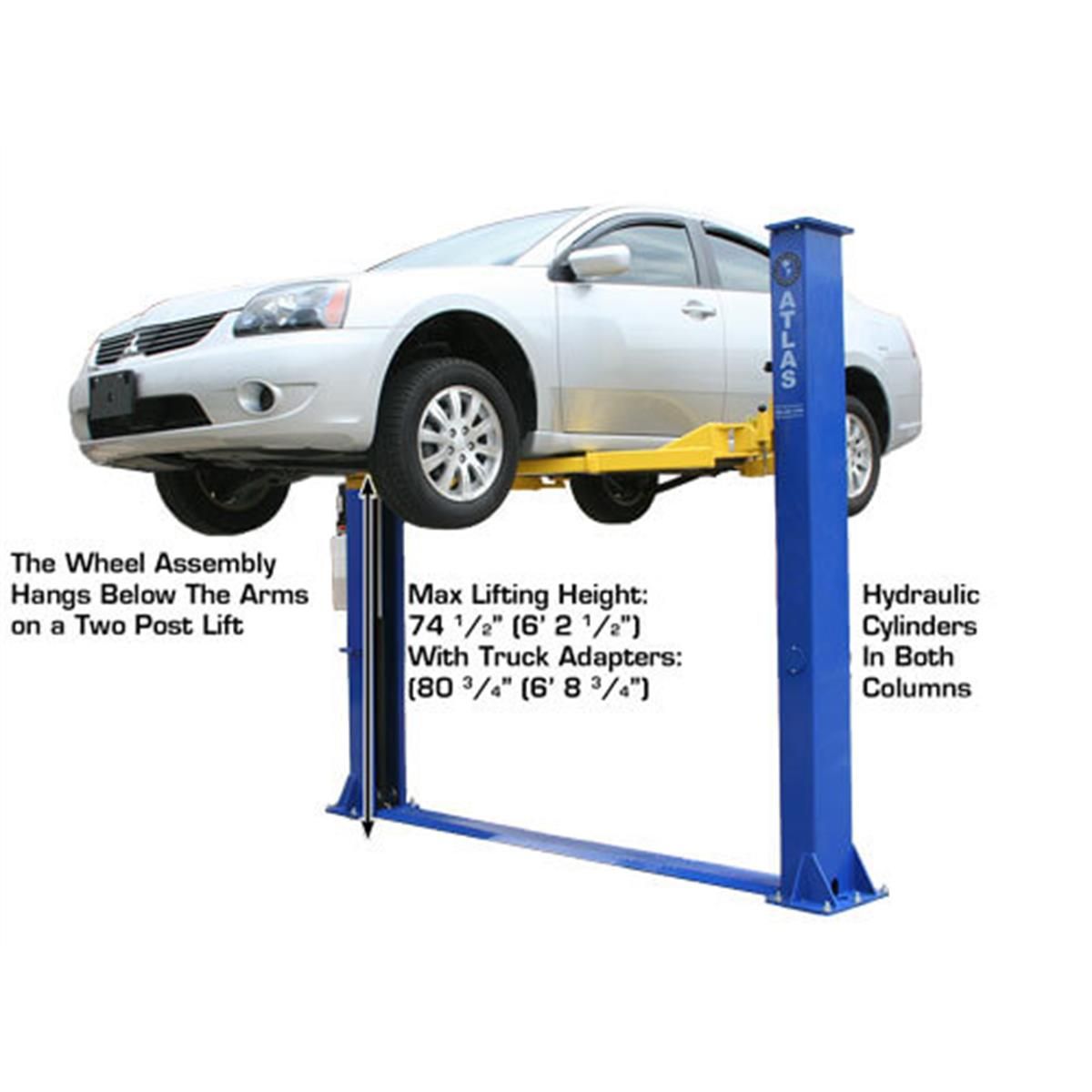

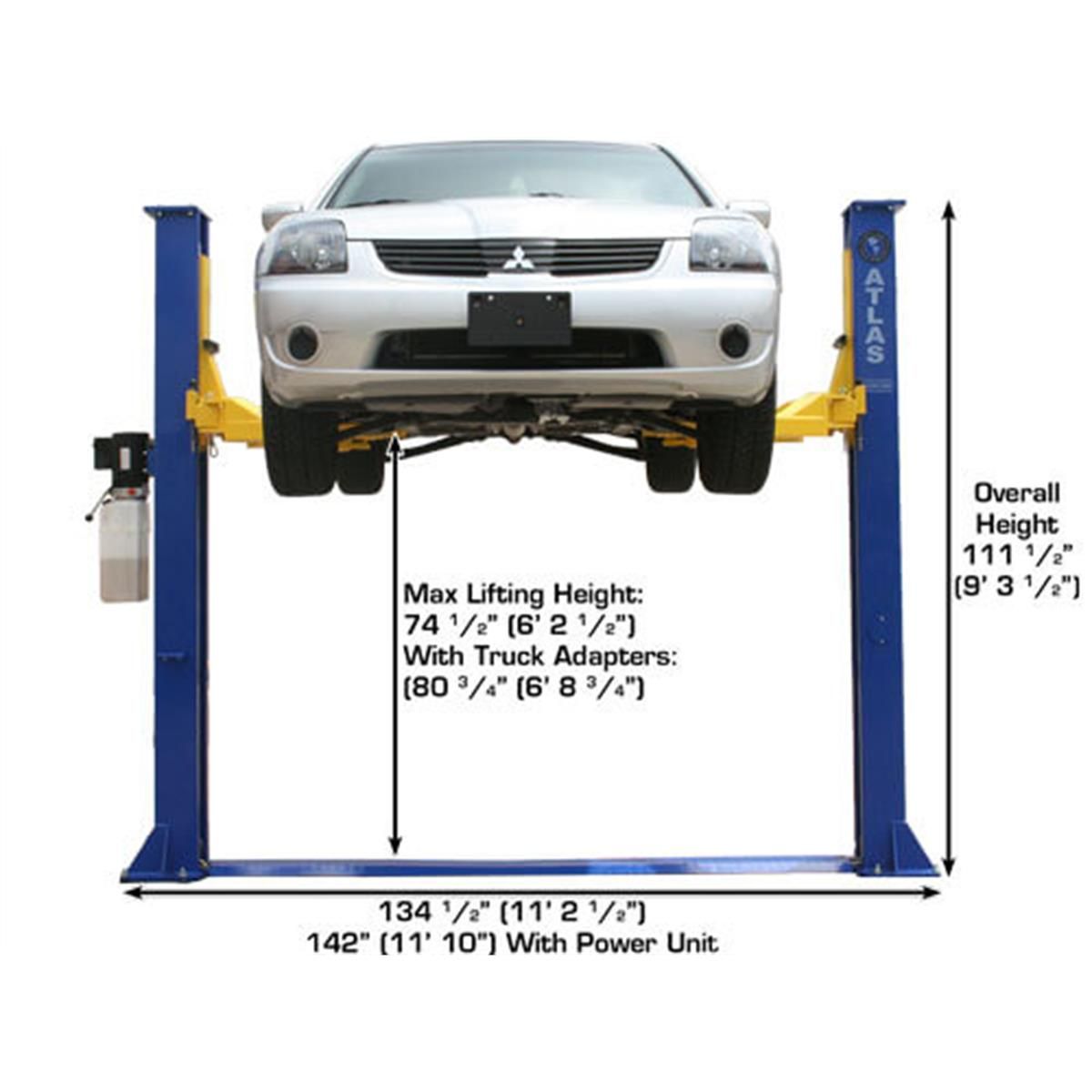

Maximum Lift Height (Without Adapters): 74 1/2″
Maximum Lift Height (With Adapters): 81″
Minimum Arm Height: 4″
Inside Column: 110″ (9′ 2″)
Drive Thru: 101″ (8′ 5″)

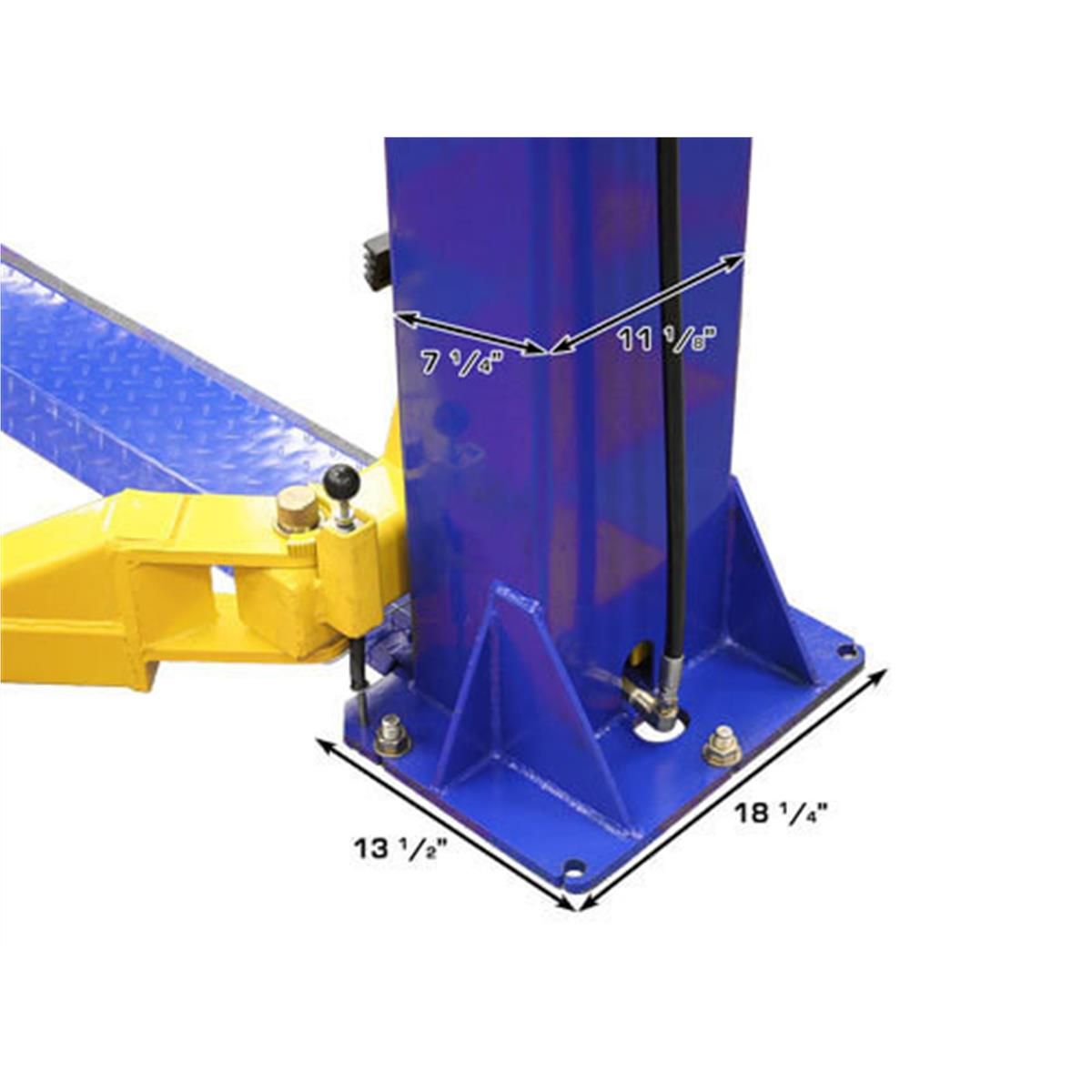

Column Size: 7 1/4″ x 11″

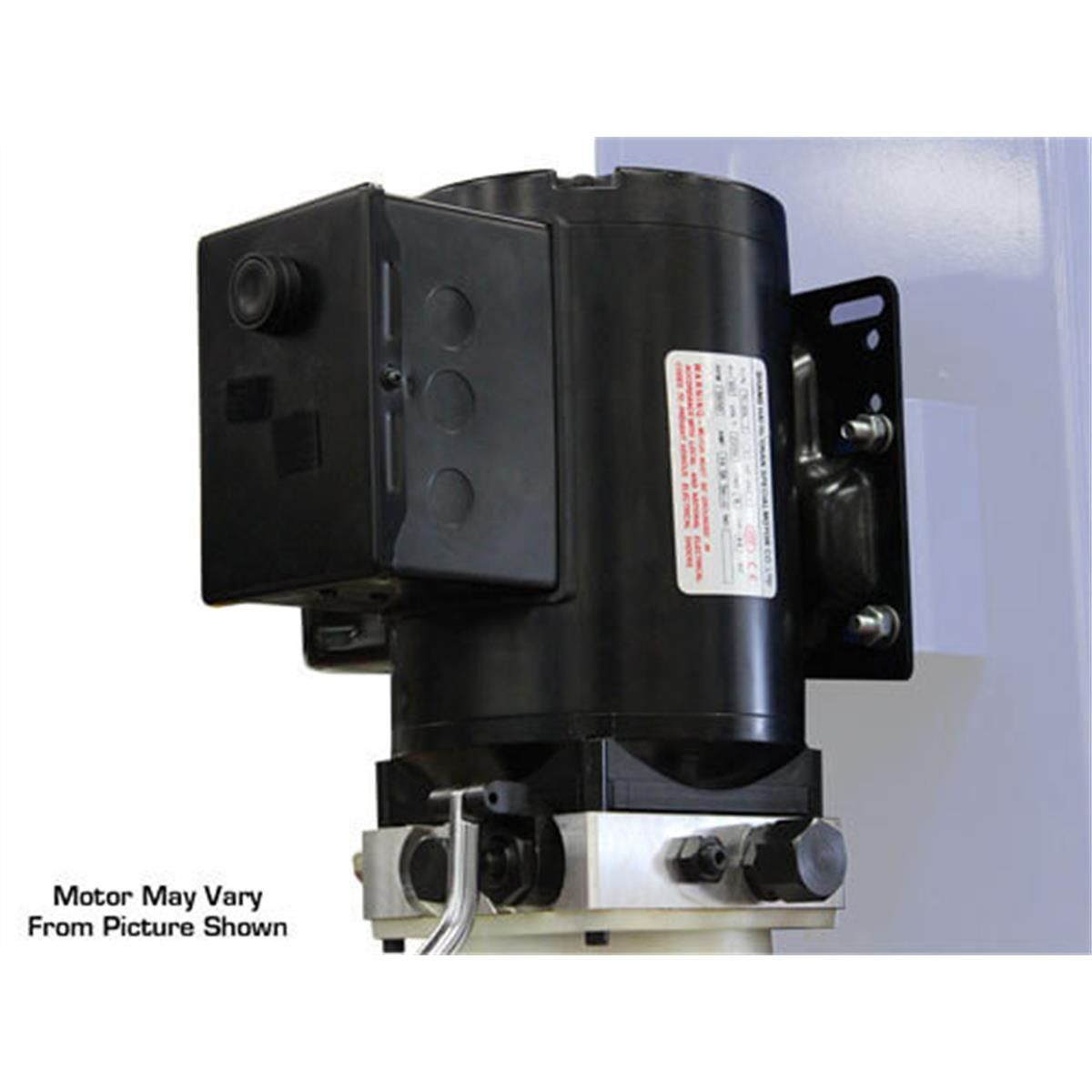

Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,400 LBS.

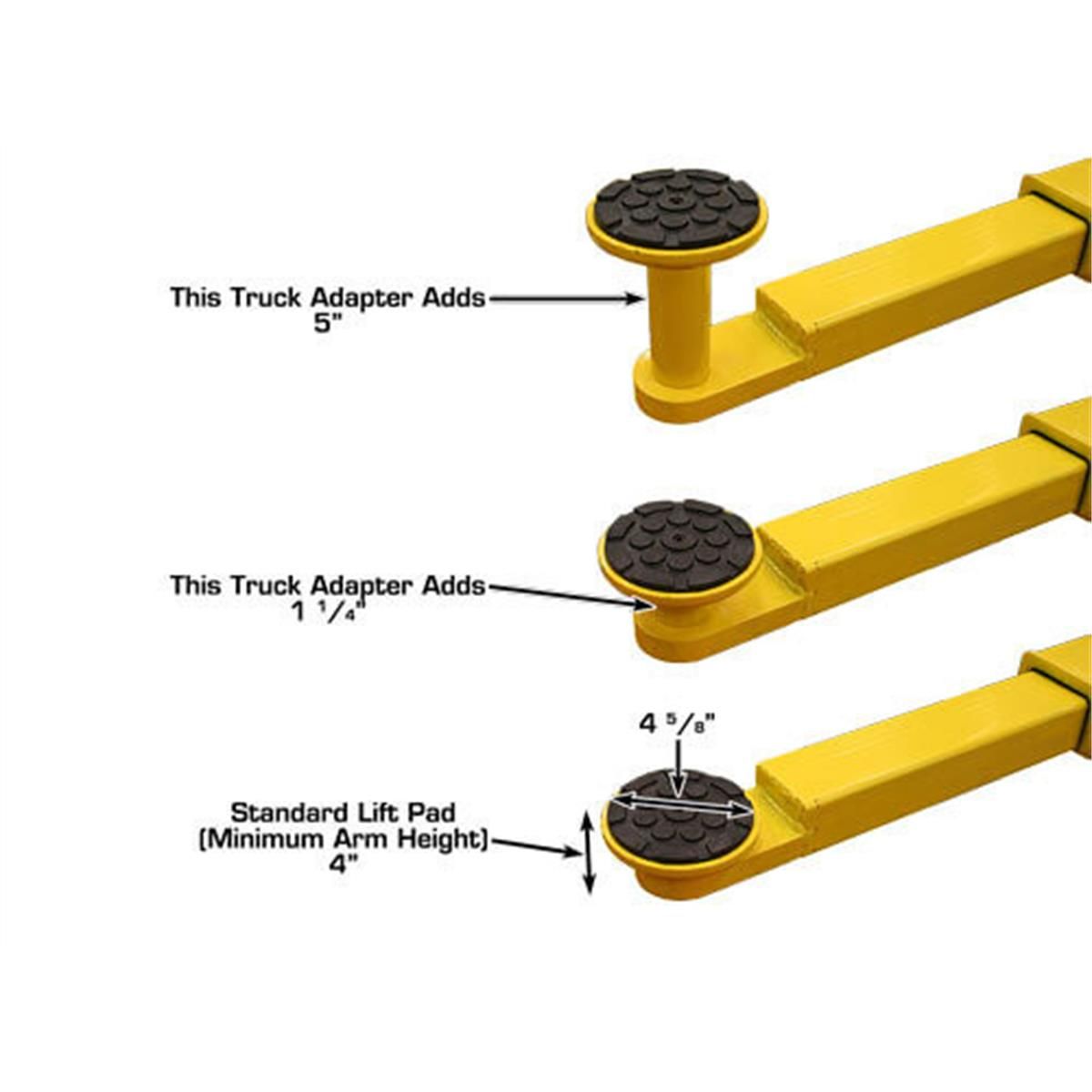

Adapter Heights: 4 Each 1.5″, 5″
