Atlas Equipment 9,000 lb. Capacity Baseplate 2-Post Lift

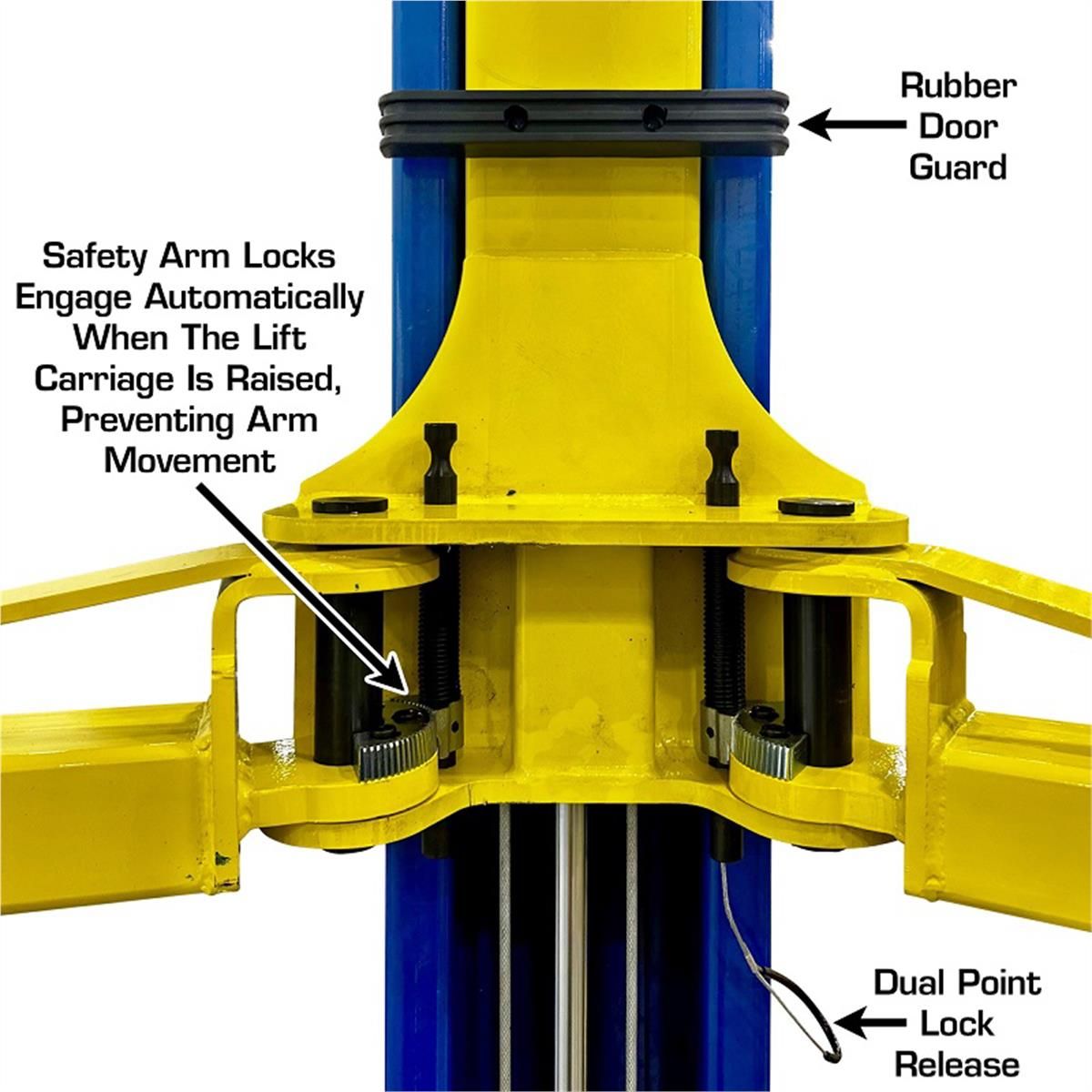

The light duty Atlas® TPF-9 lift is an economically designed baseplate 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV�s and light duty trucks. The TPF-9 has an overall height under 9 feet 4 inches. The Atlas® TPF-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick-up points) and heavier pickup trucks. The Atlas® TPF-9 two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

Specifications:

• Capacity 9,000 LB.

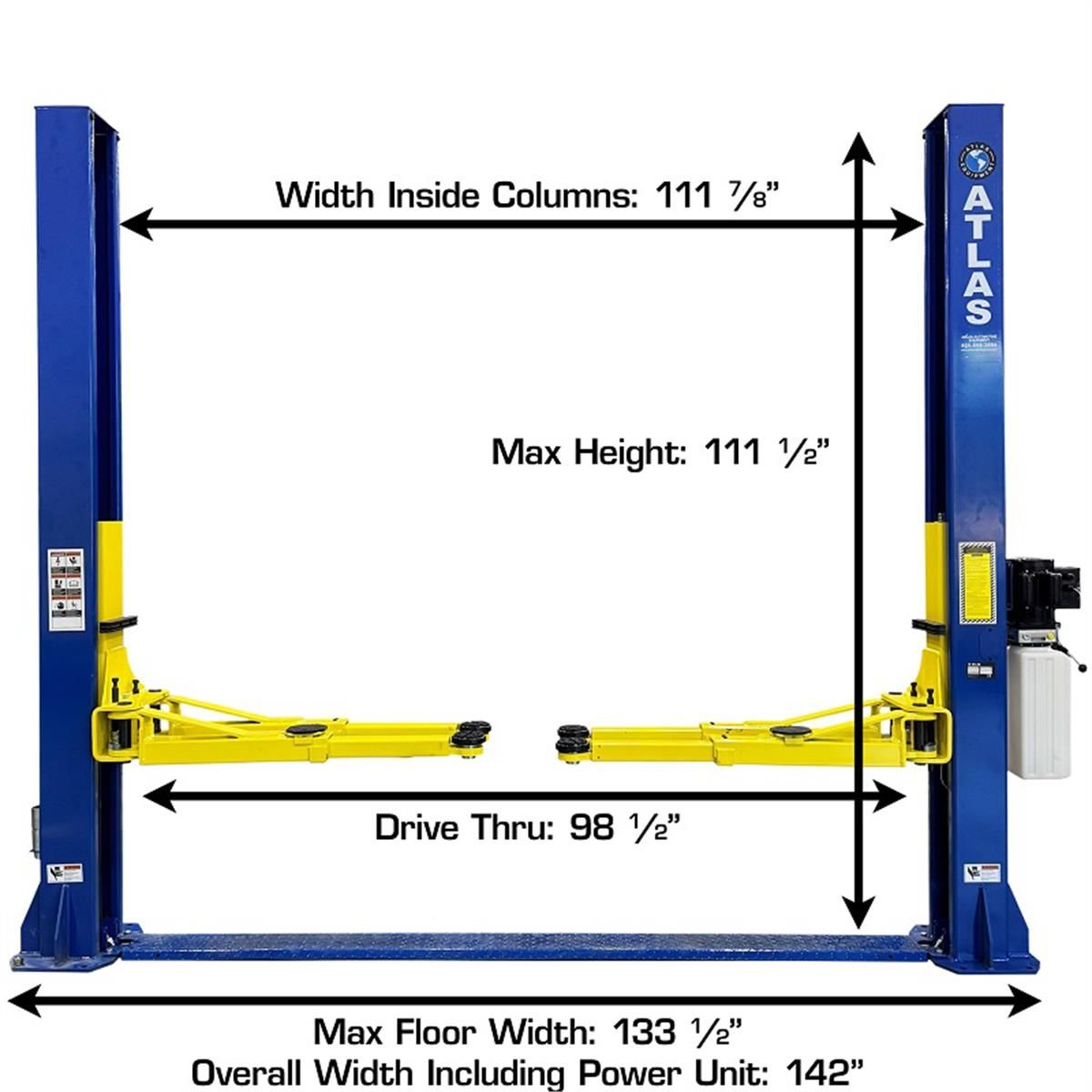

• Overall Height 111 1/2” (9′ 3 1/2″)
• Overall Floor Width 133 1/2″ (11� 1 1/2″)
• Maximum Lift Height (Without Adapters) 76 1/2″
• Maximum Lift Height (With Adapters) 79 1/2″
• Minimum Arm Height 4″
• Inside Column 111 3/8” (9� 2 3/8”)
• Drive Thru 98 1/2” (8� 2 1/2”)
• Column Size 7 1/4″ x 11″
• Column Thickness of Steel 5mm

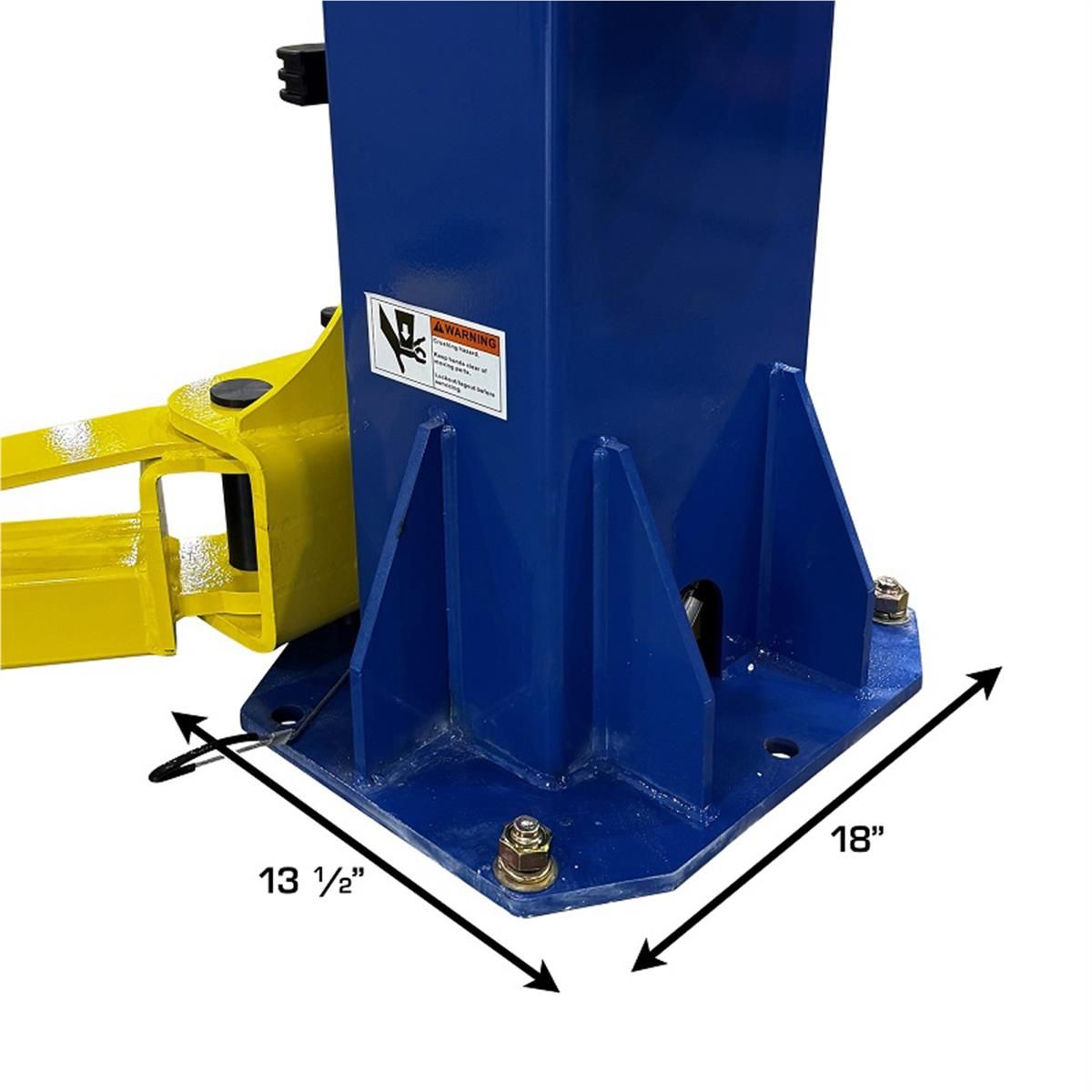

• Base Of Lift 14 1/4″ x 18″
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

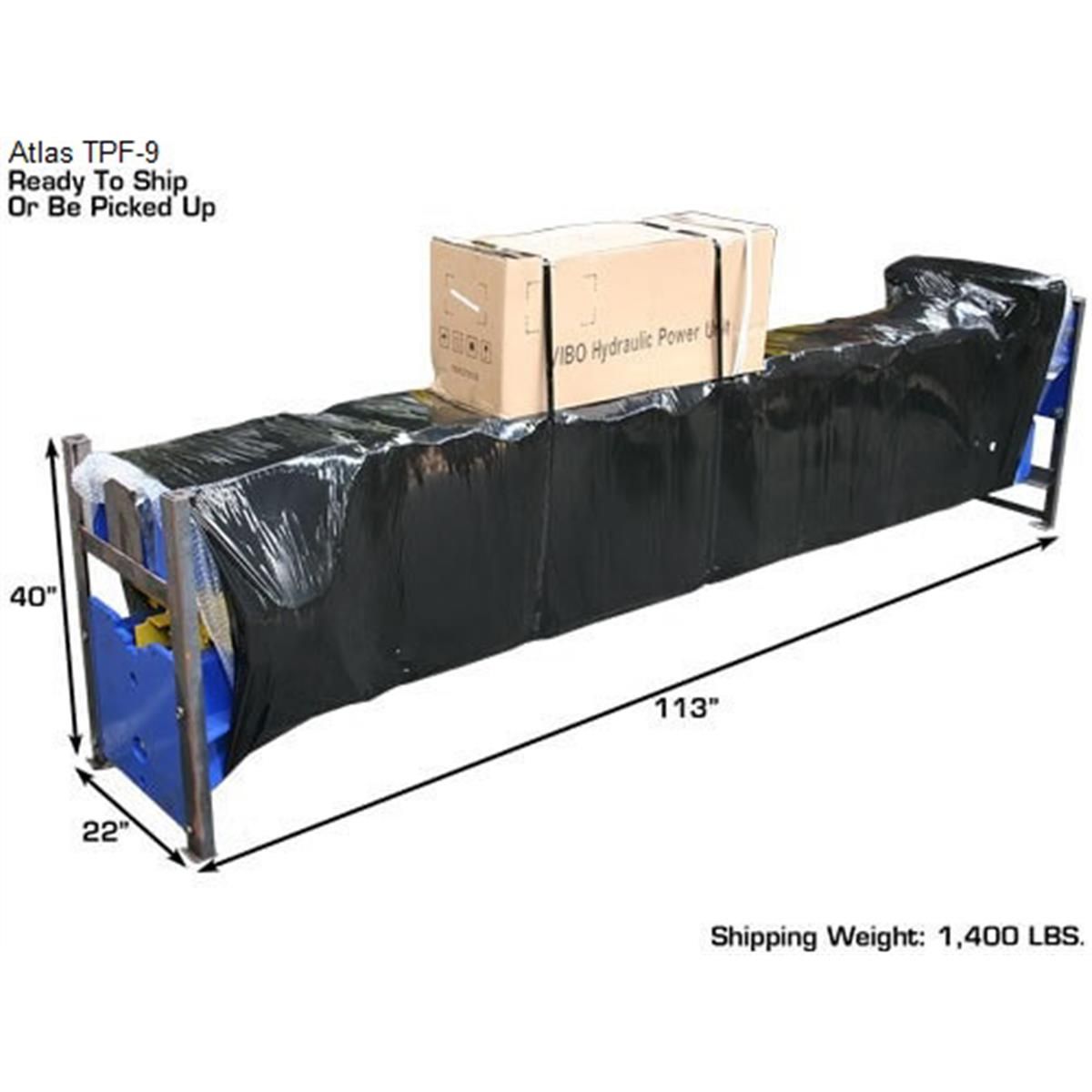

• Shipping Weight 1,400 LBS.

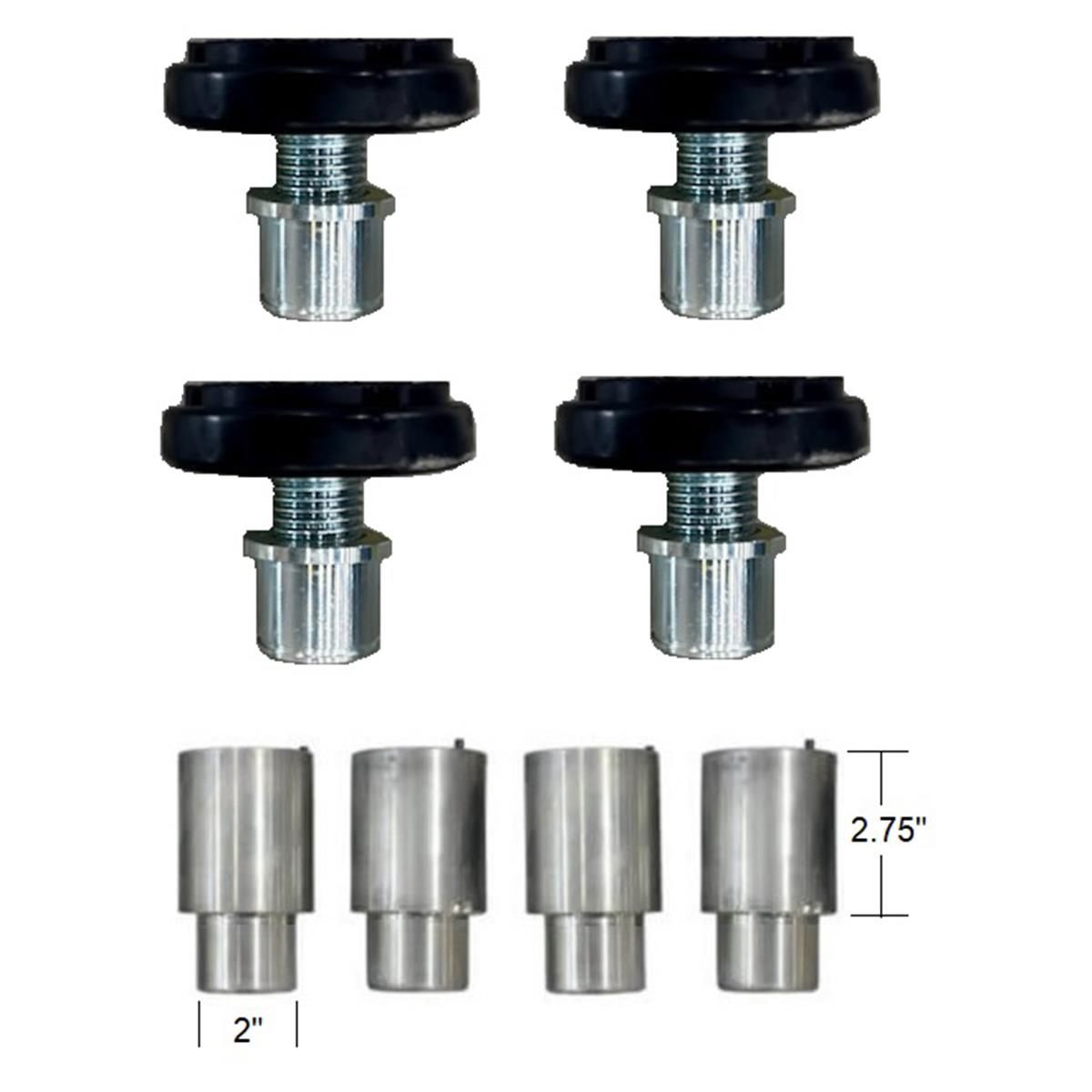

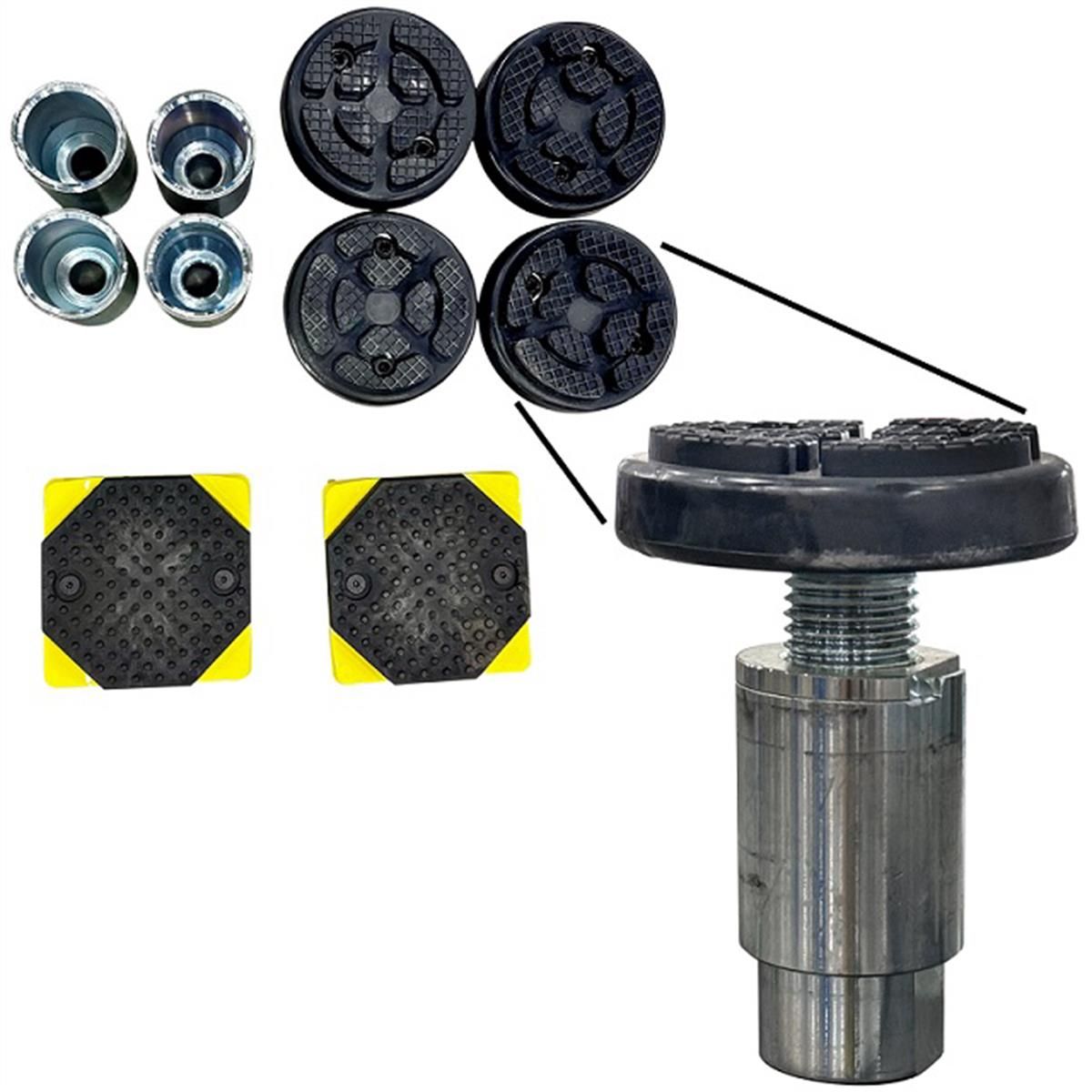

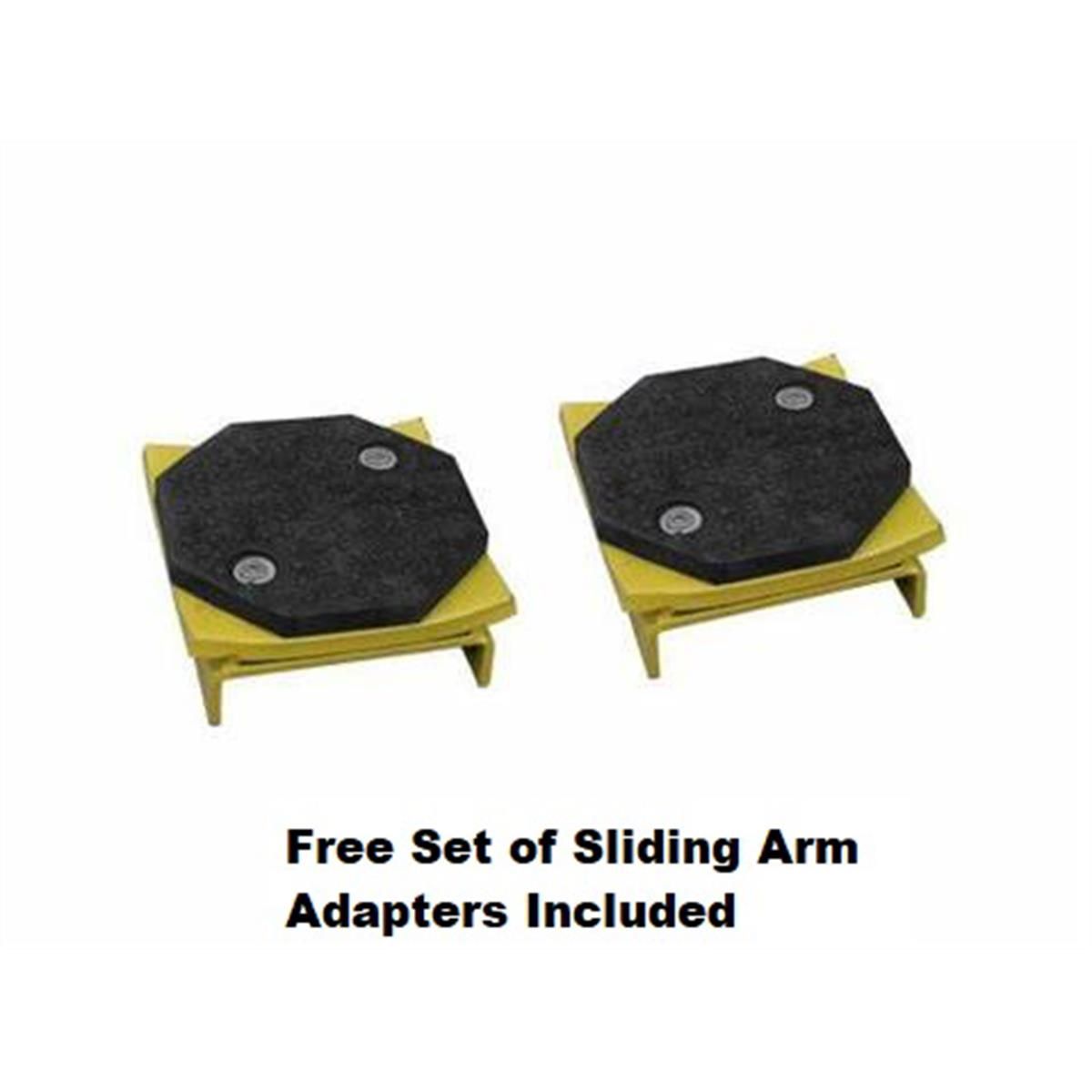

• Adapter Heights 4 Each 2.75″
• Arm Hole/Adapter Peg Size 2”

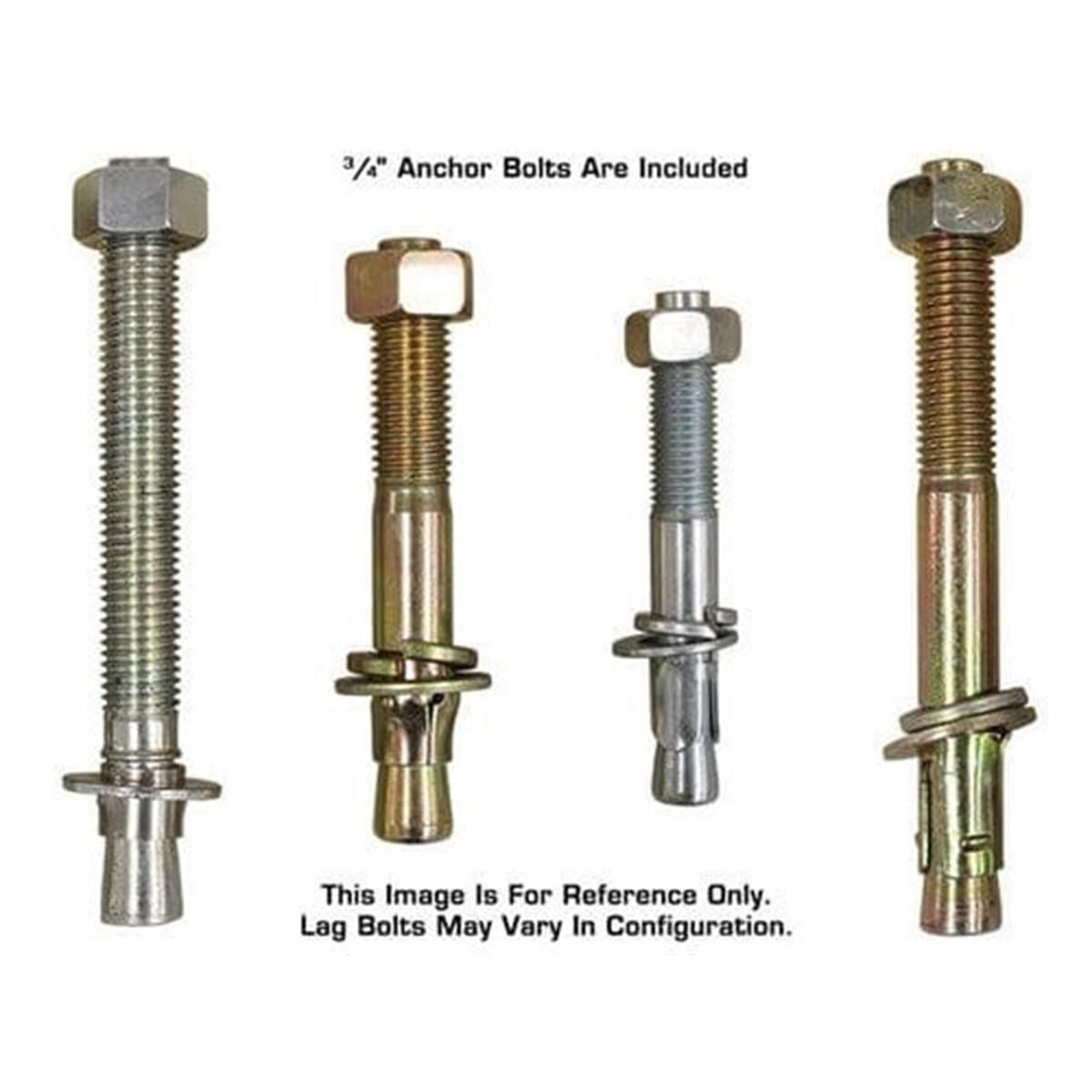

• Requires a minimum of 4″ of concrete with a 3000 psi. rating
