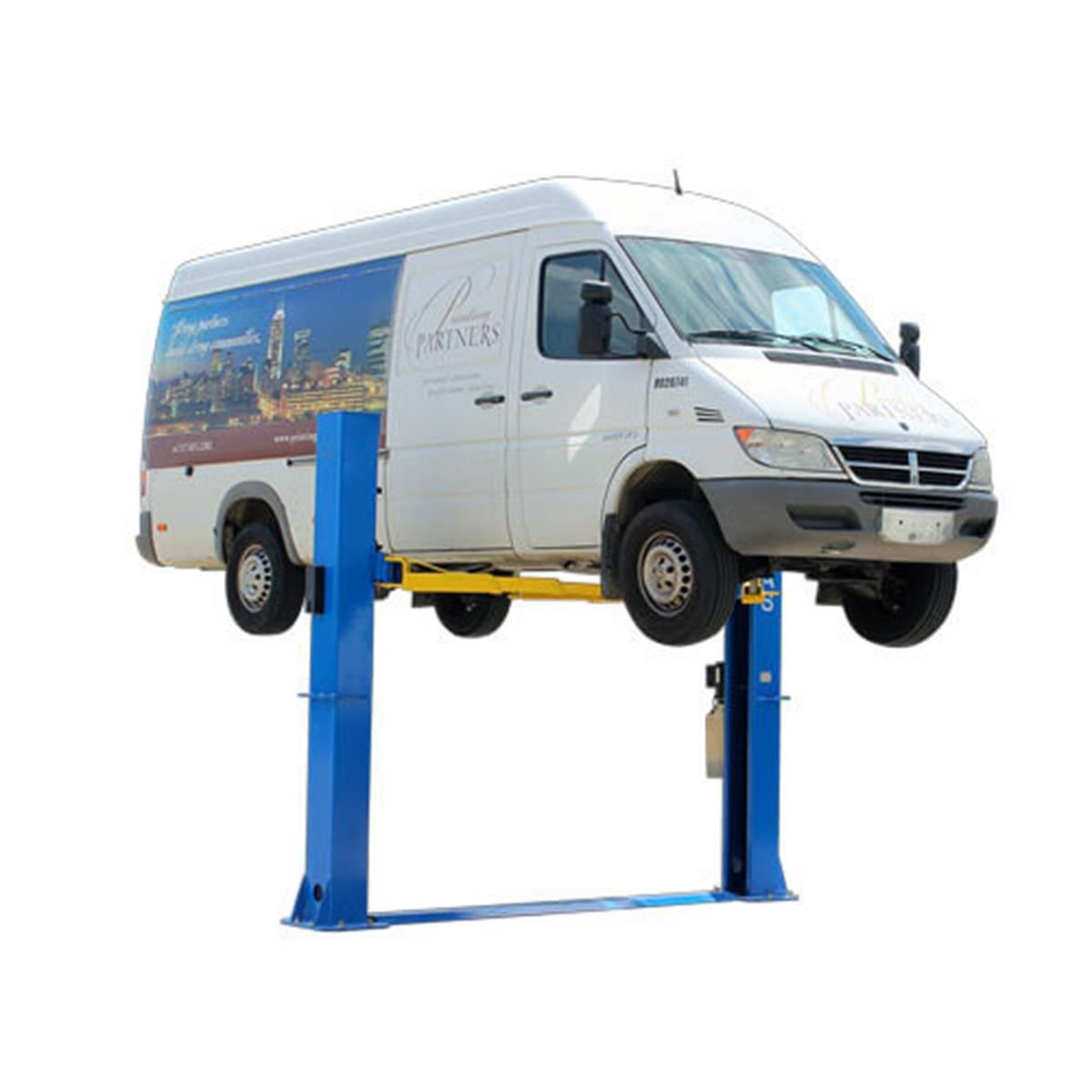

Atlas Equipment BP10000X Commercial Grade Baseplate 2-Post Lift 10,000 lb. Capacity

Call for Price

Add to wishlist Add to compare

Categories: 2 Post Lifts, Lifts Brand: Atlas

Product information

brand	ATLAS
Post Type	2 Post Lift

Description

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Features

10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8" (9' 3 7/8")
Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously

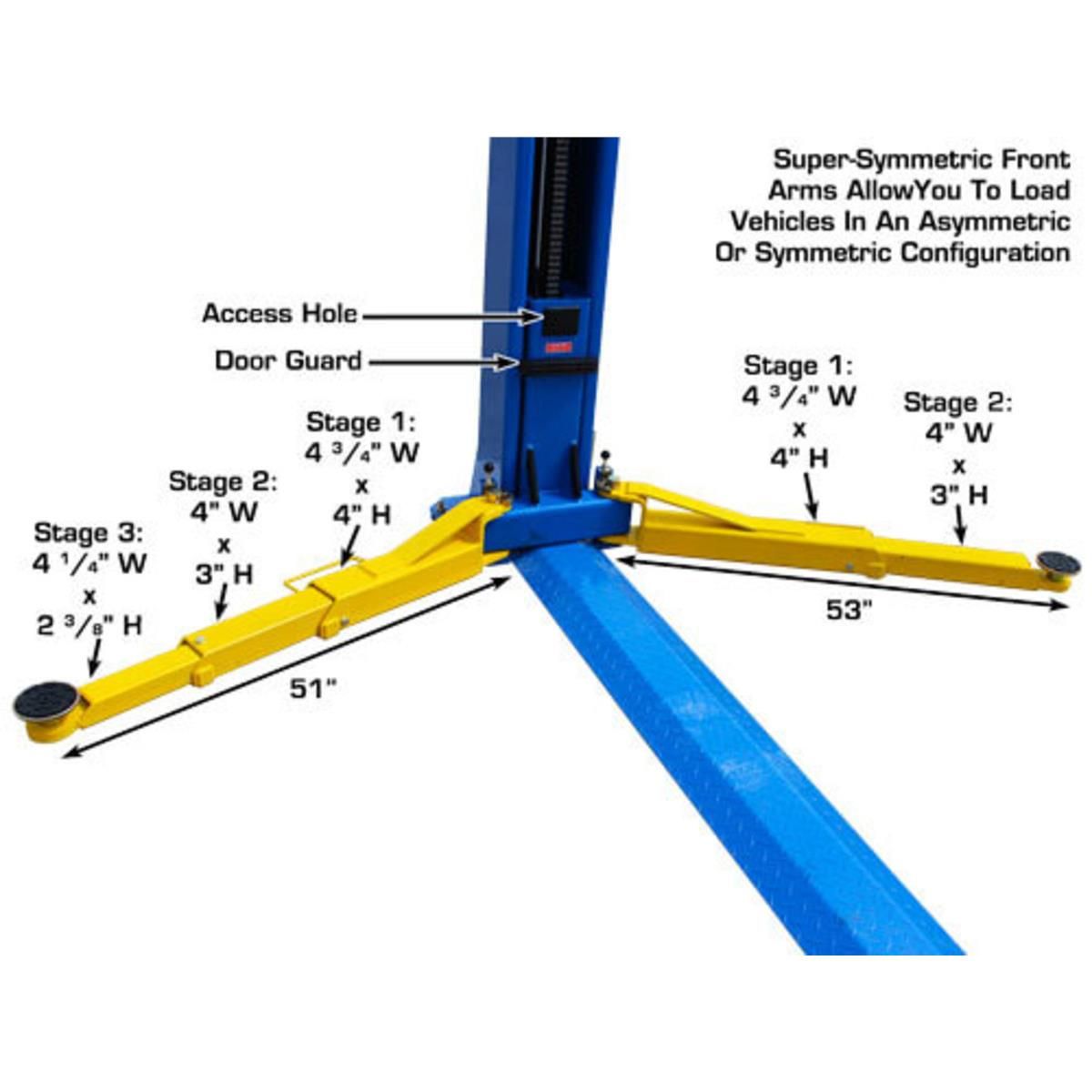

Super-Symmetric Arms

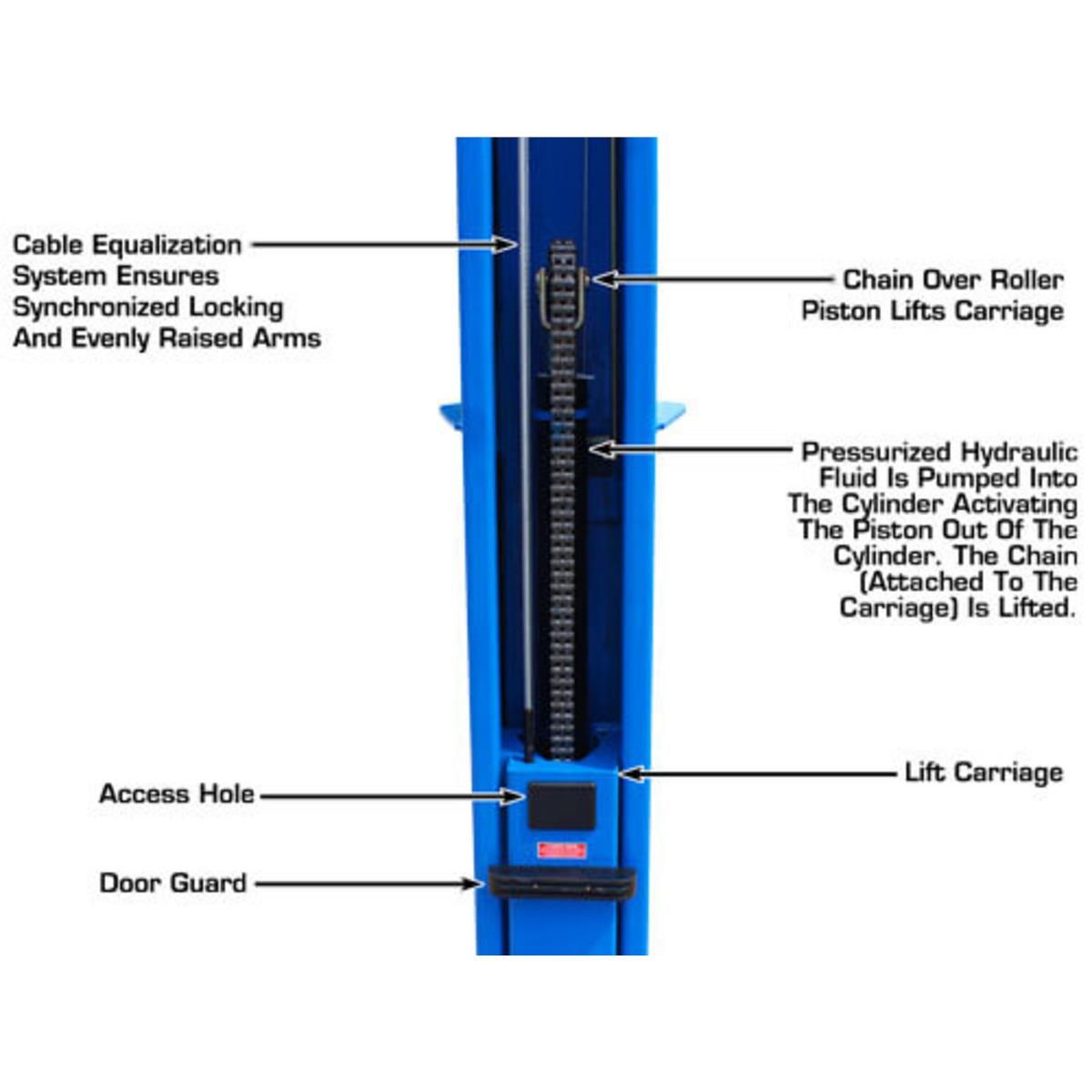

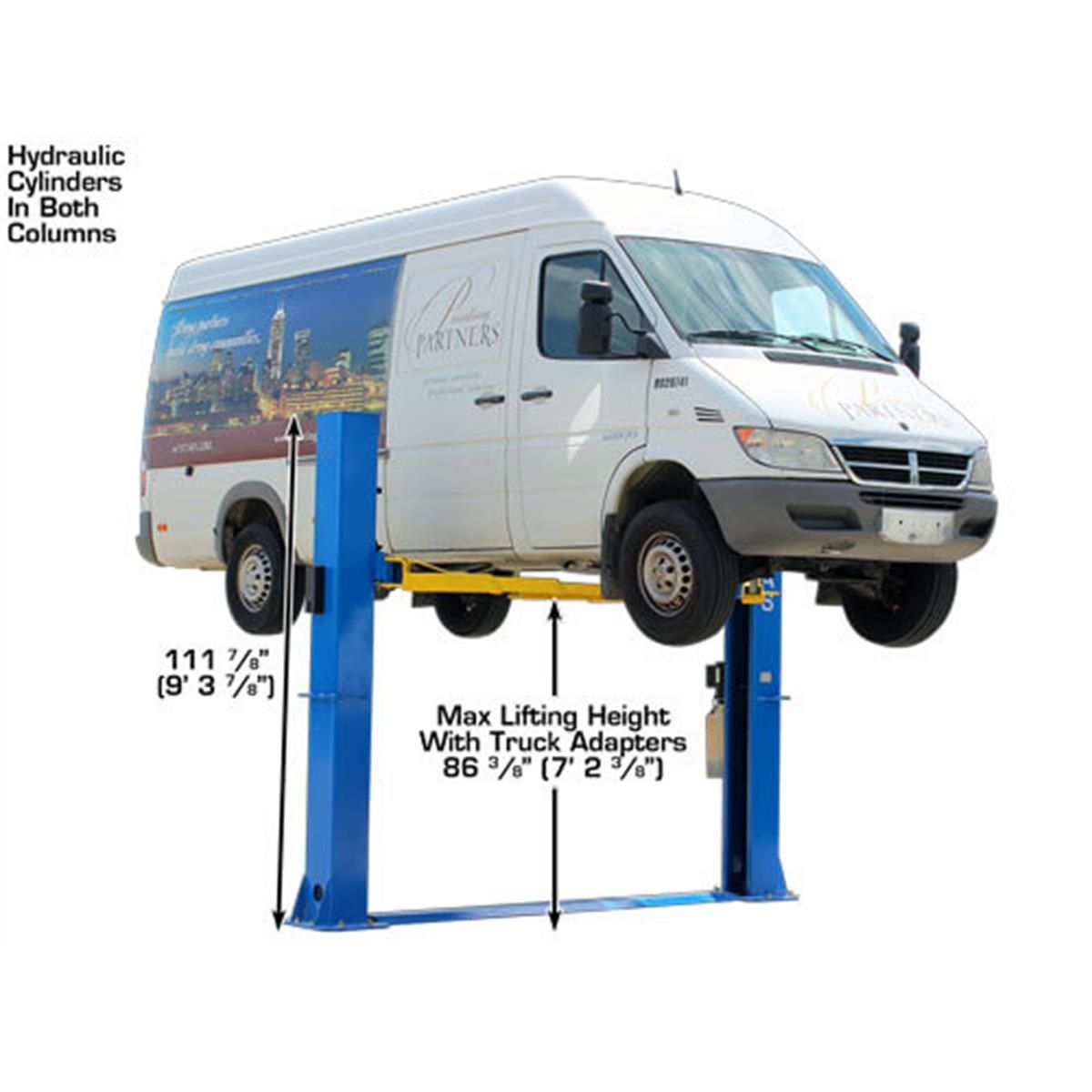

Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish

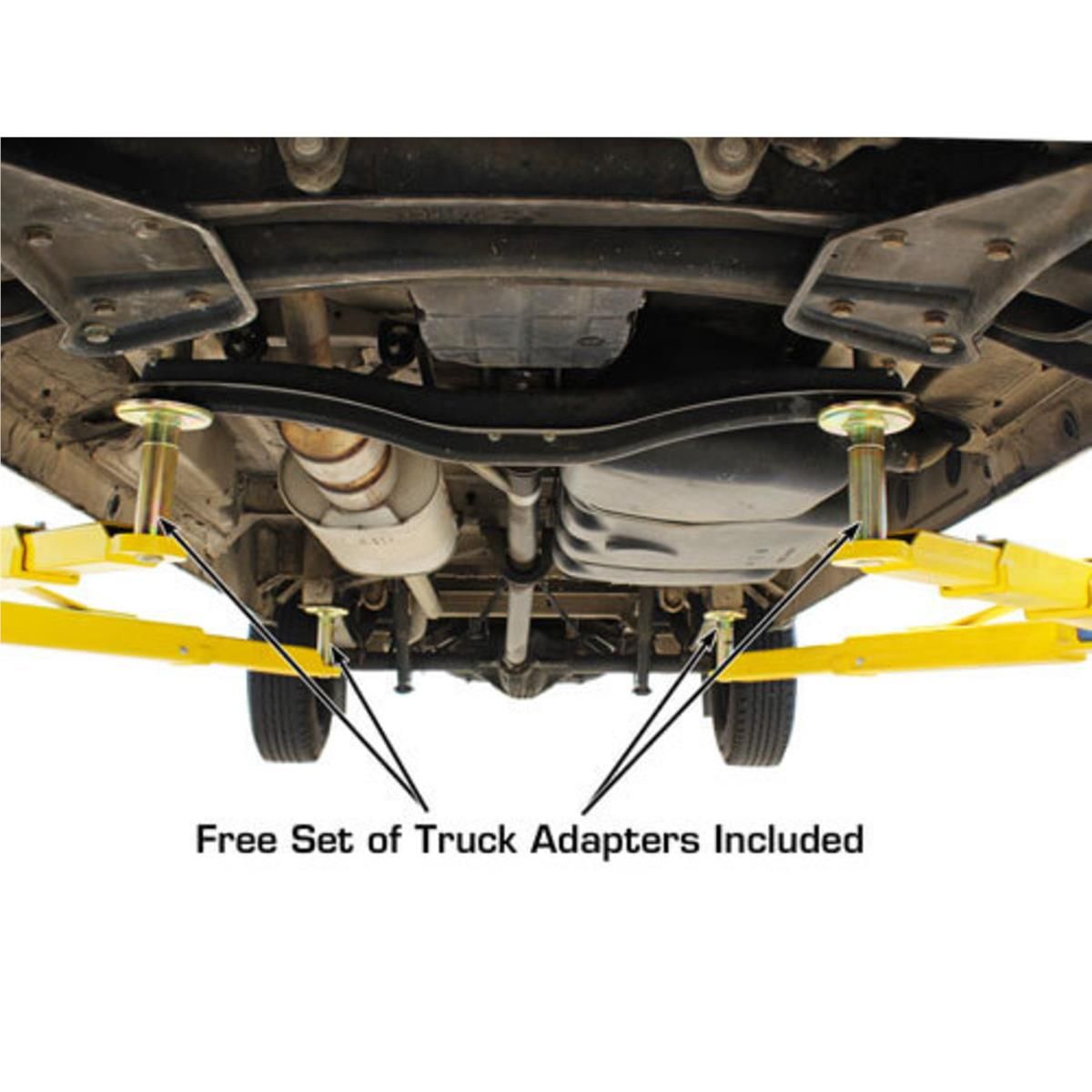

Free 12 Piece Truck Adapter Set
Shipping Weight: 1,640 LBS.
5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

Description

Description

Proposition 65 Warning for California Consumers icon

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Specifications:

Capacity: 10,000 LB.

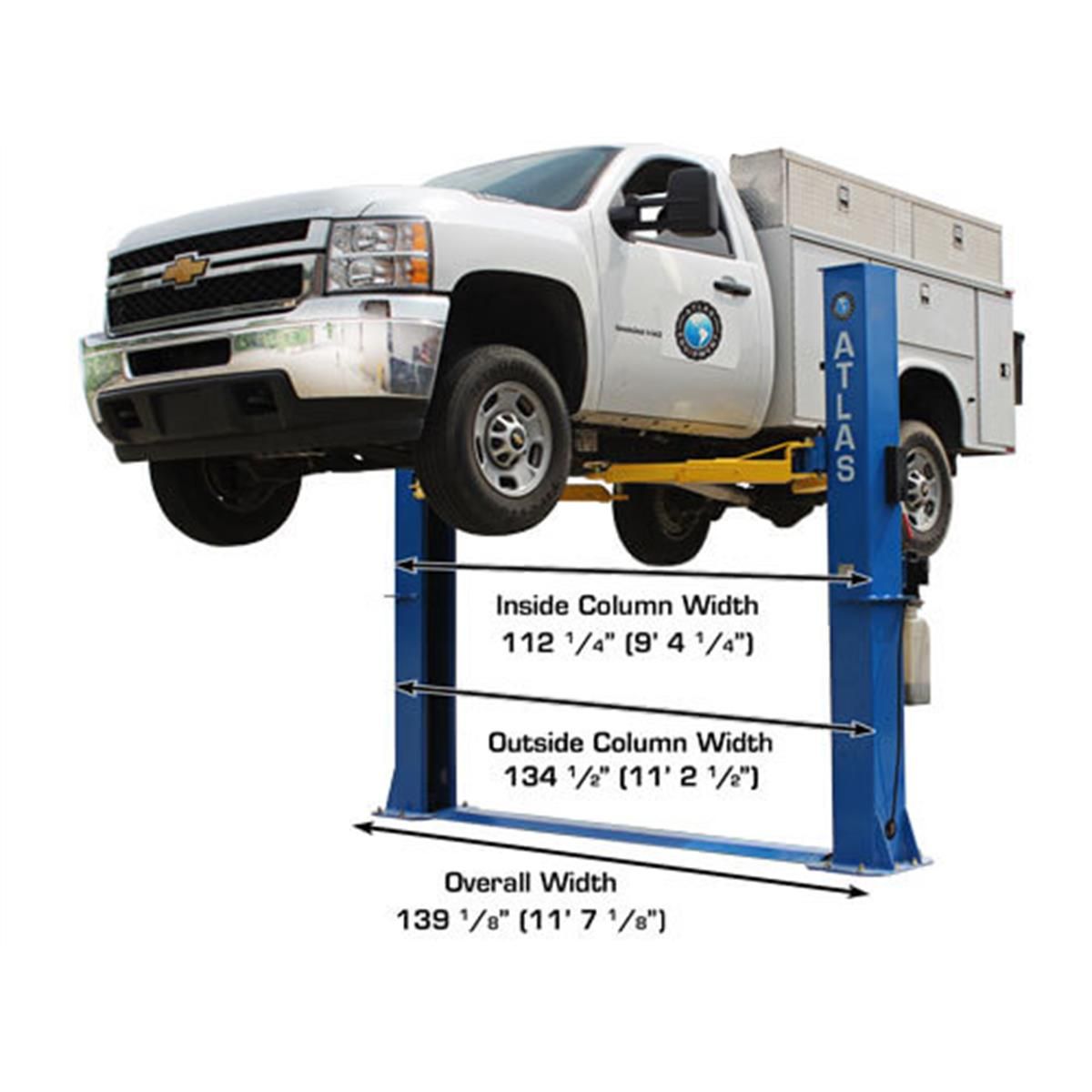

Overall Floor Width: 139 1/8″ (11′ 7 1/8″)
Outside Column to Outside Column: 134 1/2″ (11′ 2 1/2″)

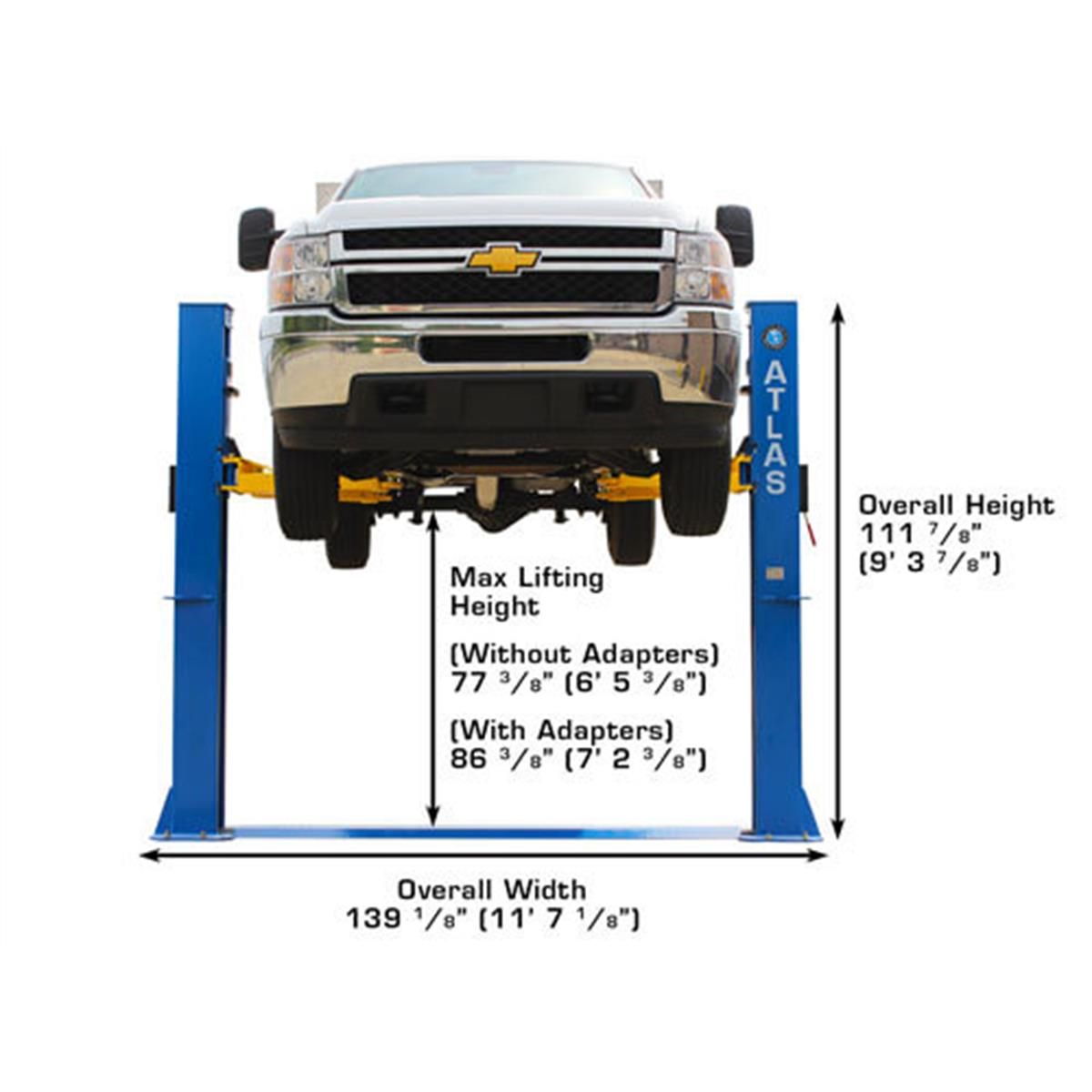

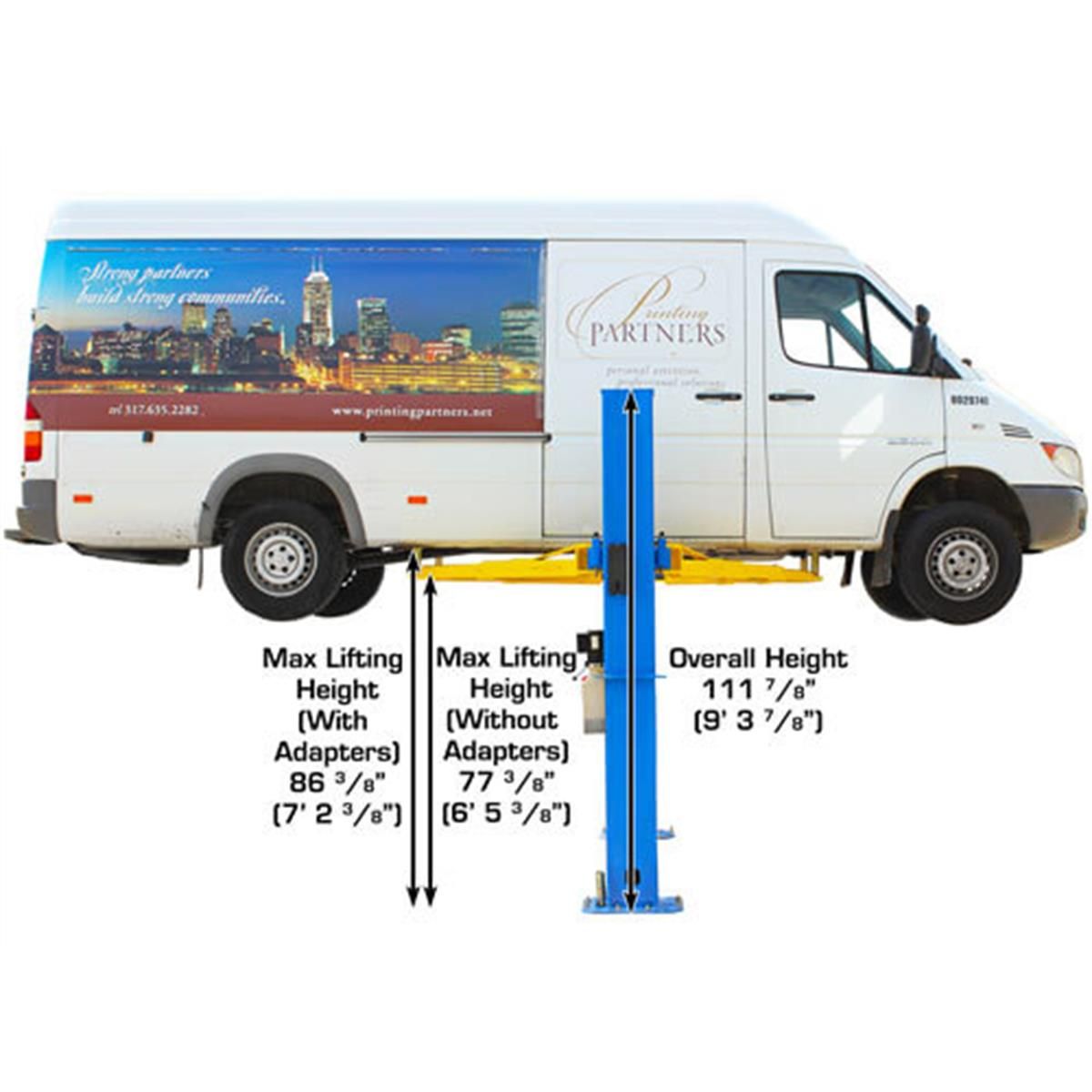

Maximum Lift Height (Without Adapters): 77 3/8″
Maximum Lift Height (With Adapters): 86 3/8″
Minimum Arm Height: 4″

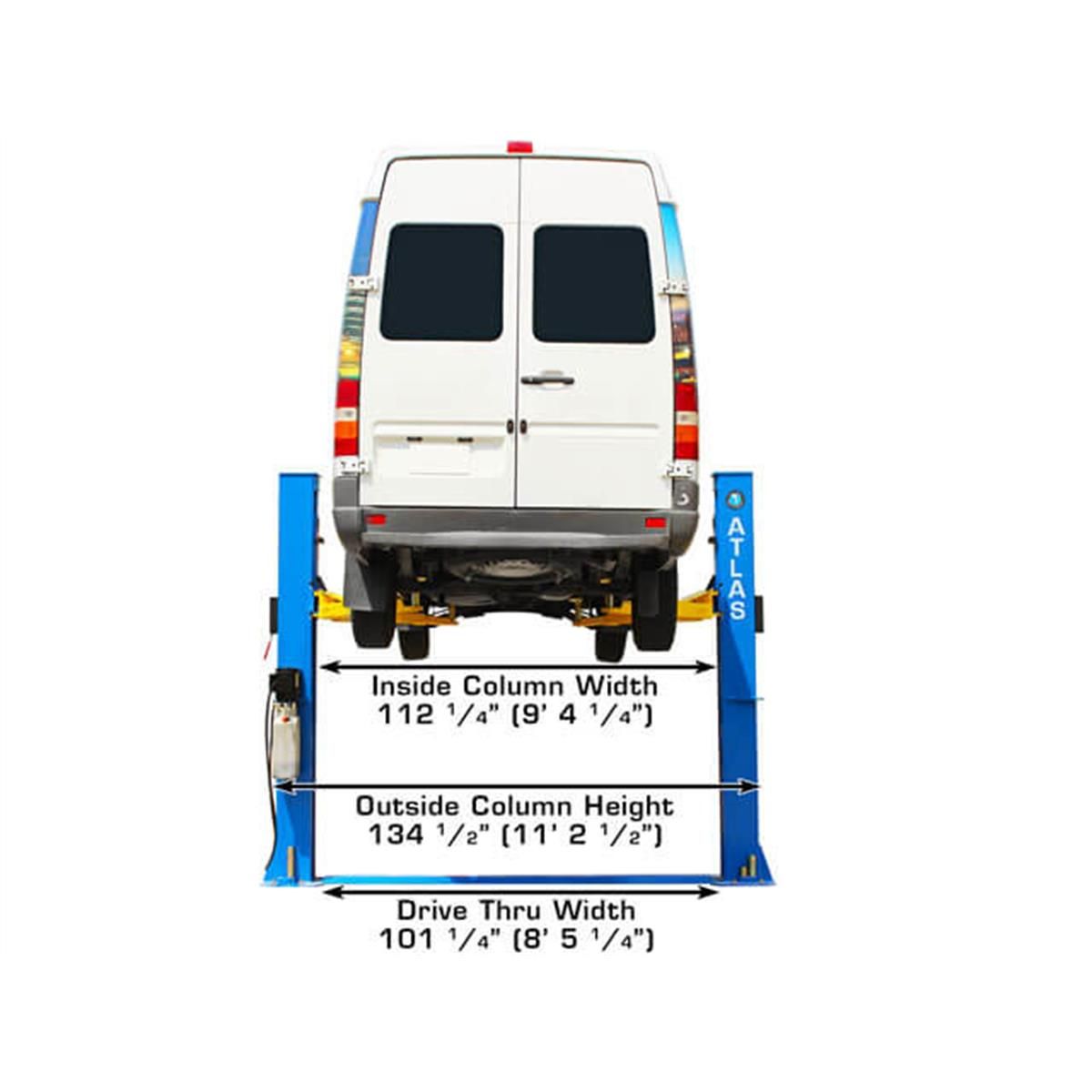

Inside Column: 112 1/4″ (9′ 4 1/4″)
Drive Thru: 101 1/4″ (8′ 5 1/4″)
Column Size: 9 1/2″ x 11″
Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,640 LBS.
Adapter Heights: 4 Each 2″, 3″, 6″
