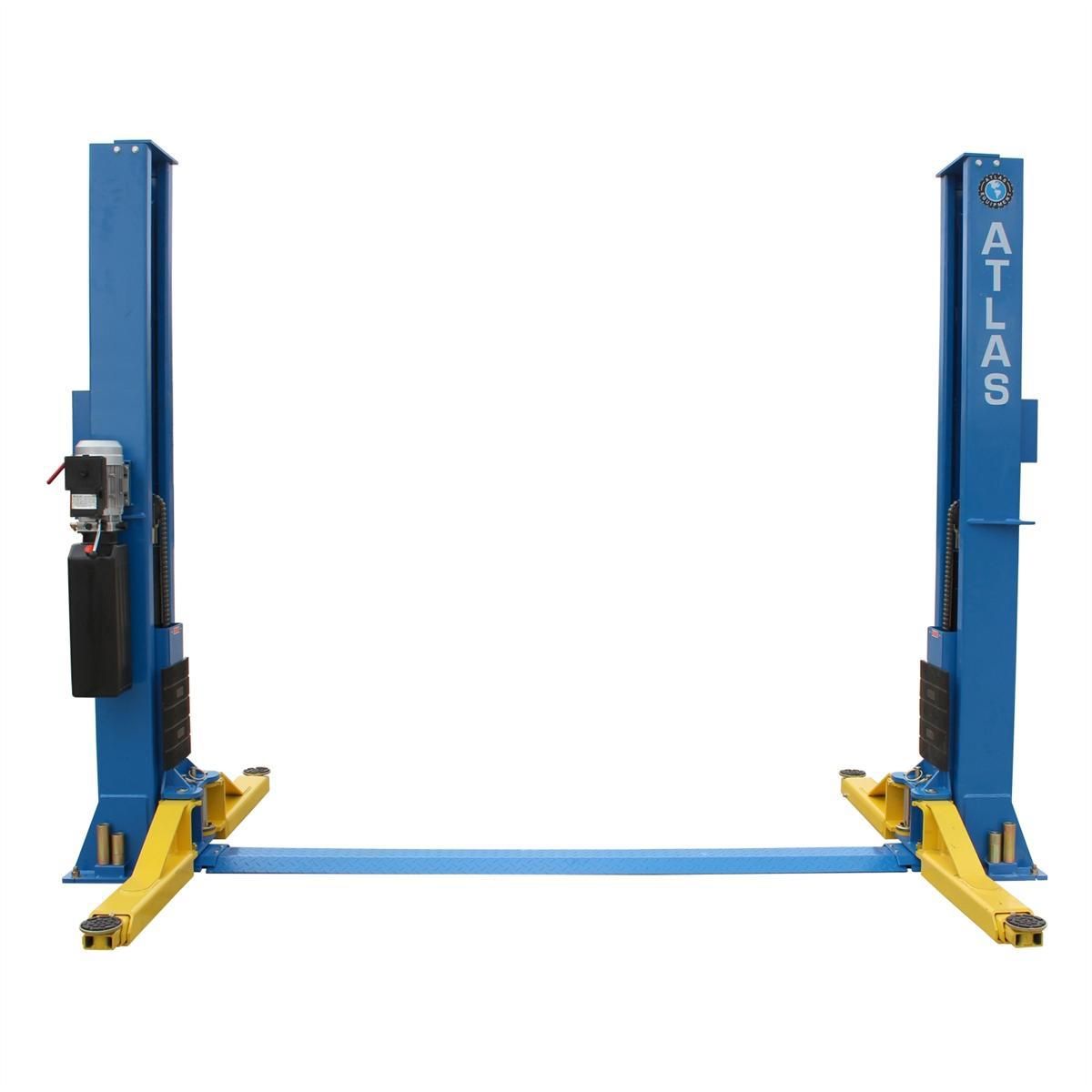

Atlas Equipment BP12000X Commercial Grade Baseplate 2-Post Lift 12,000 lb. Capacity

Call for Price

Add to wishlist Add to compare

Categories: 2 Post Lifts, Lifts

Product information

brand	ATLAS
Post Type	2 Post Lift

Description

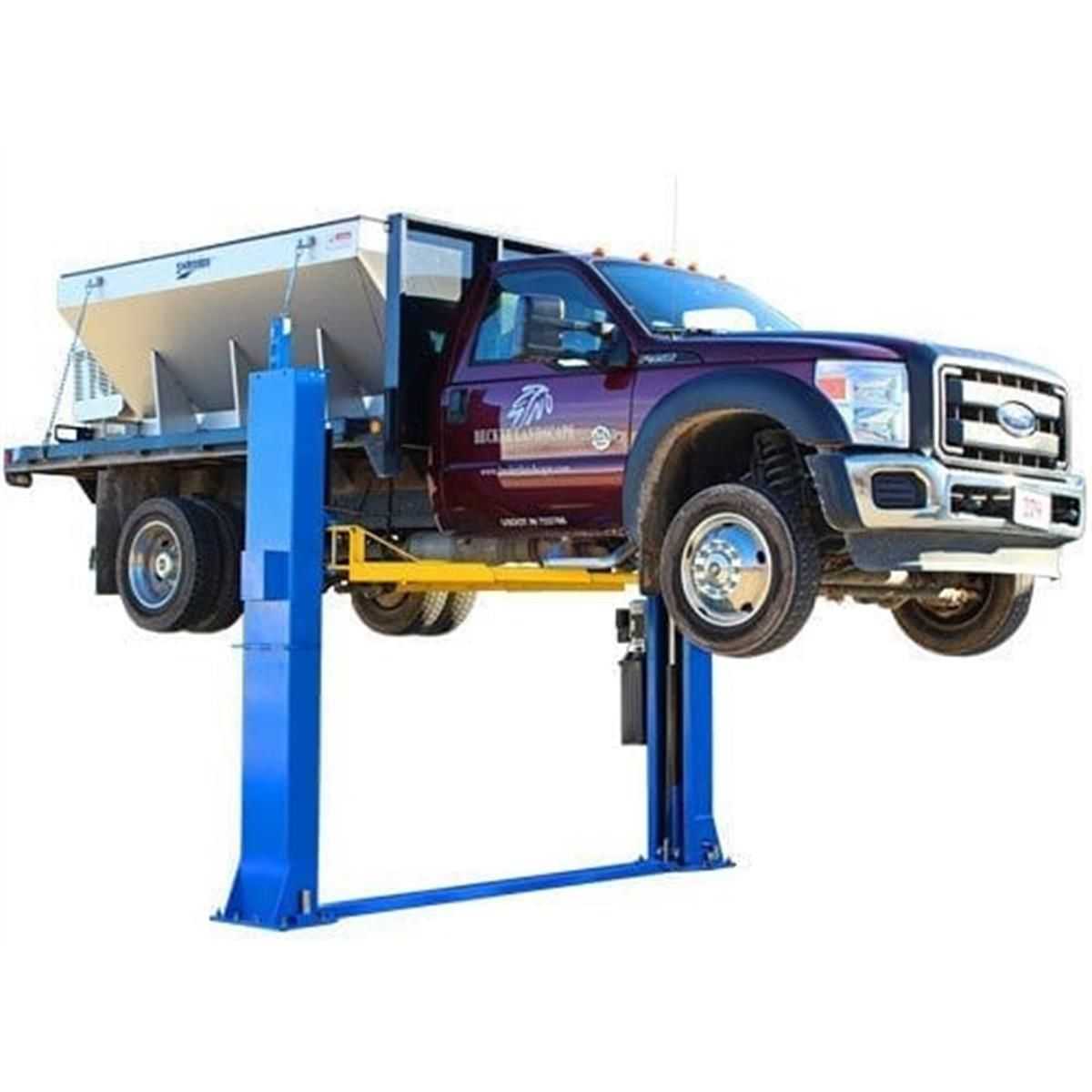

The Atlas® BP12000X is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas® BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate "driving between" the lift columns.

Features

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 122 1/2" (10' 2 1/2")
Adjustable Width
3-Stage Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
Free 12 piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 2,130 lbs.
5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

Description

Description

Proposition 65 Warning for California Consumers icon

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Capacity: 12,000 LB.

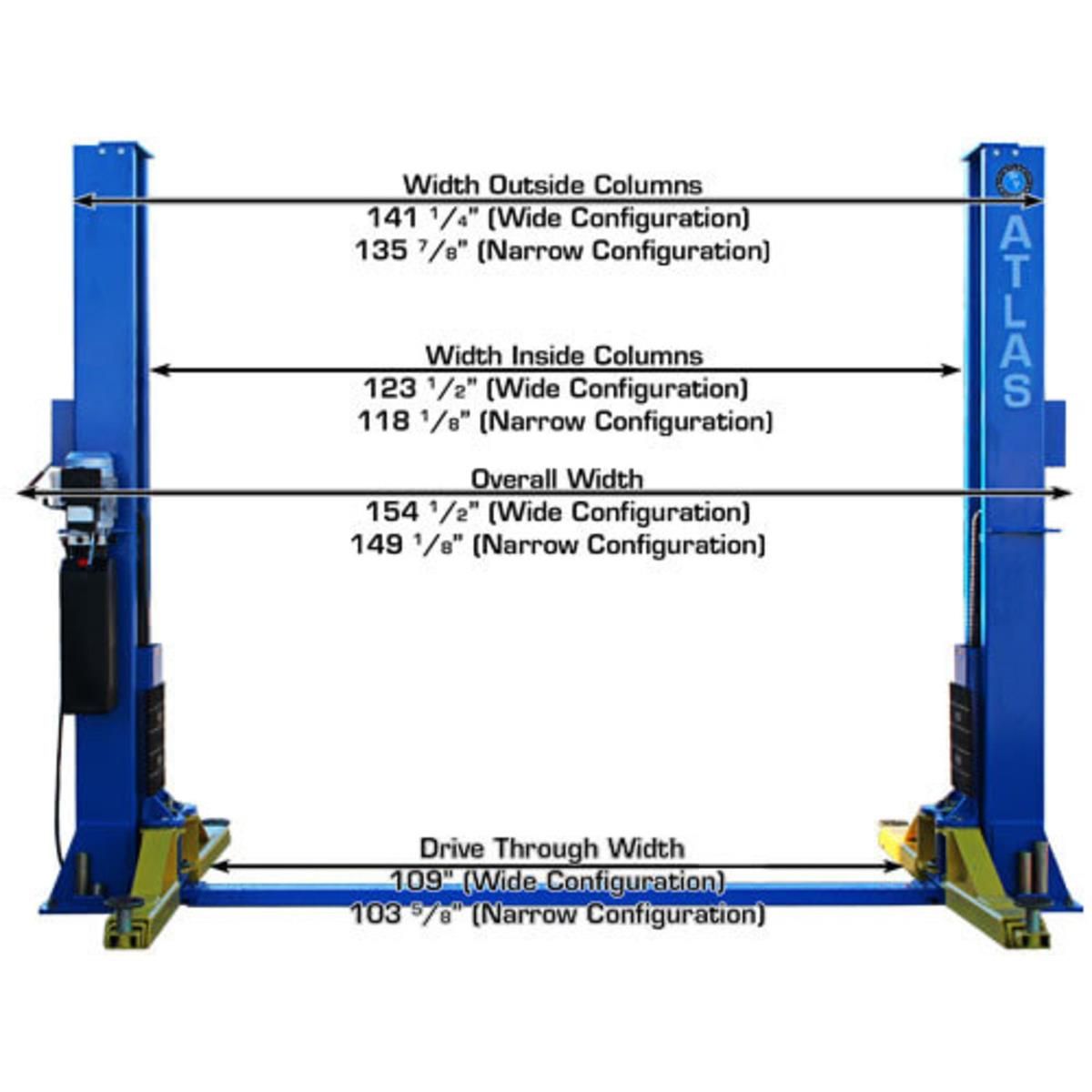

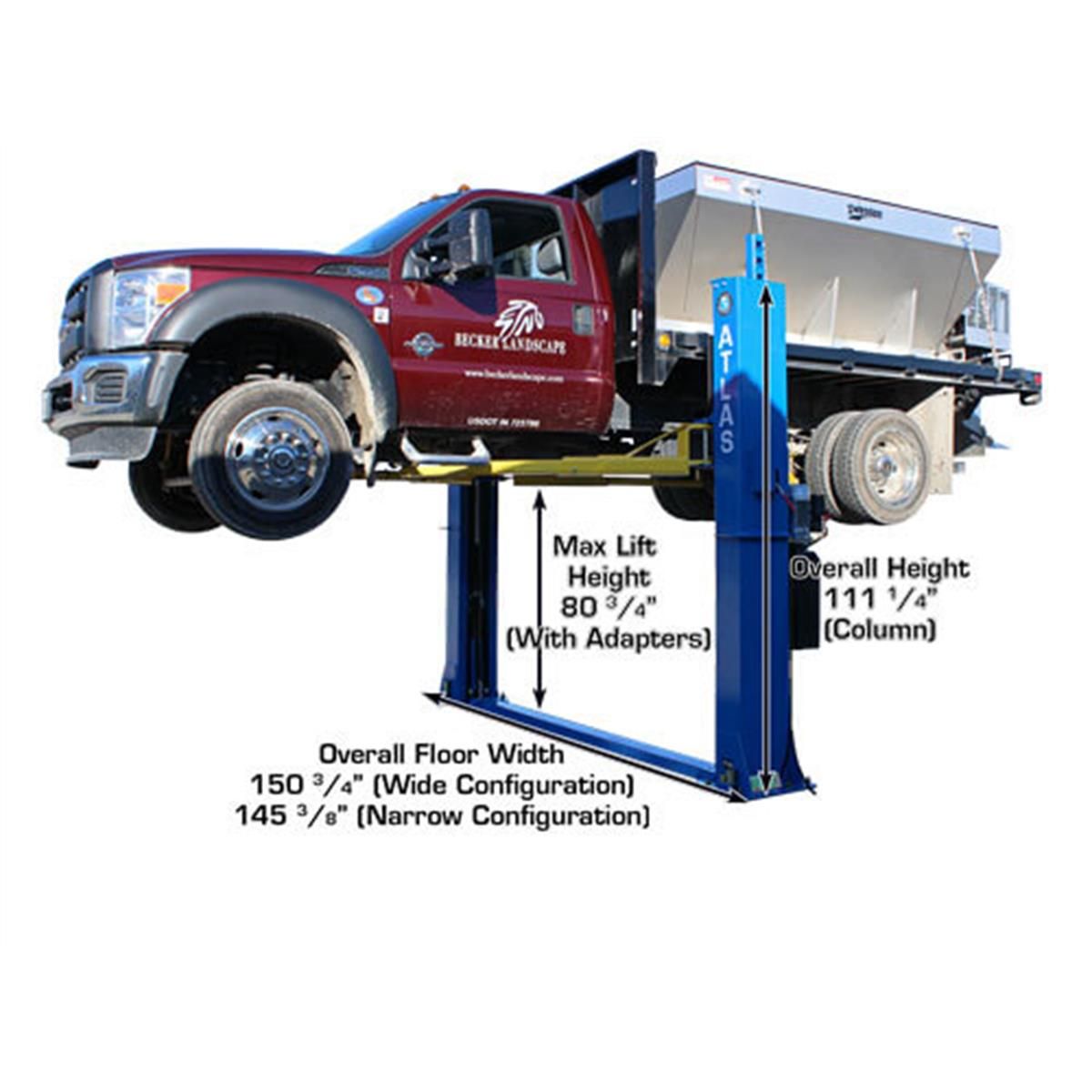

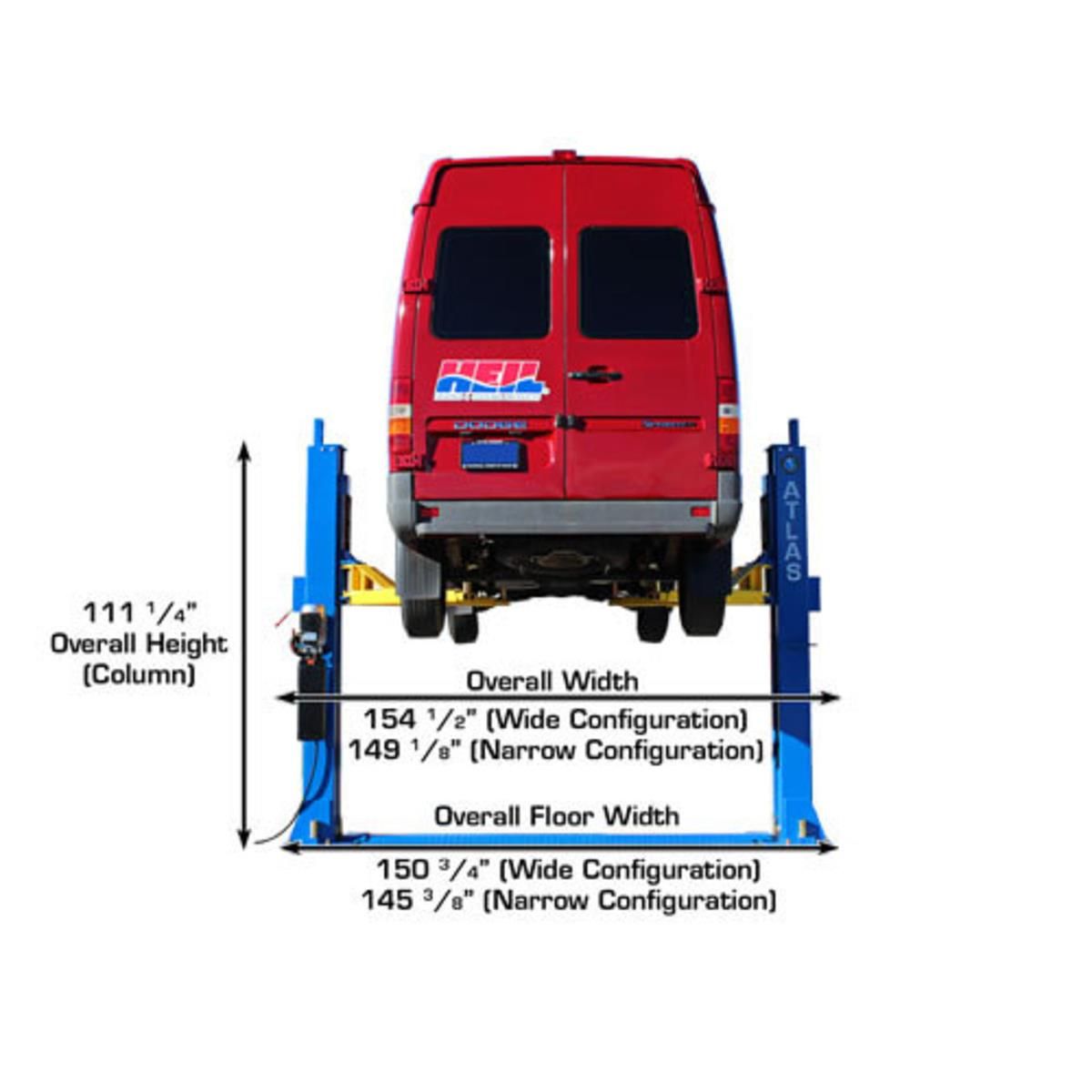

Overall Floor Width: 149 3/8″ (12′ 5 3/8″) or 154 1/2″ (12′ 10 1/2″)

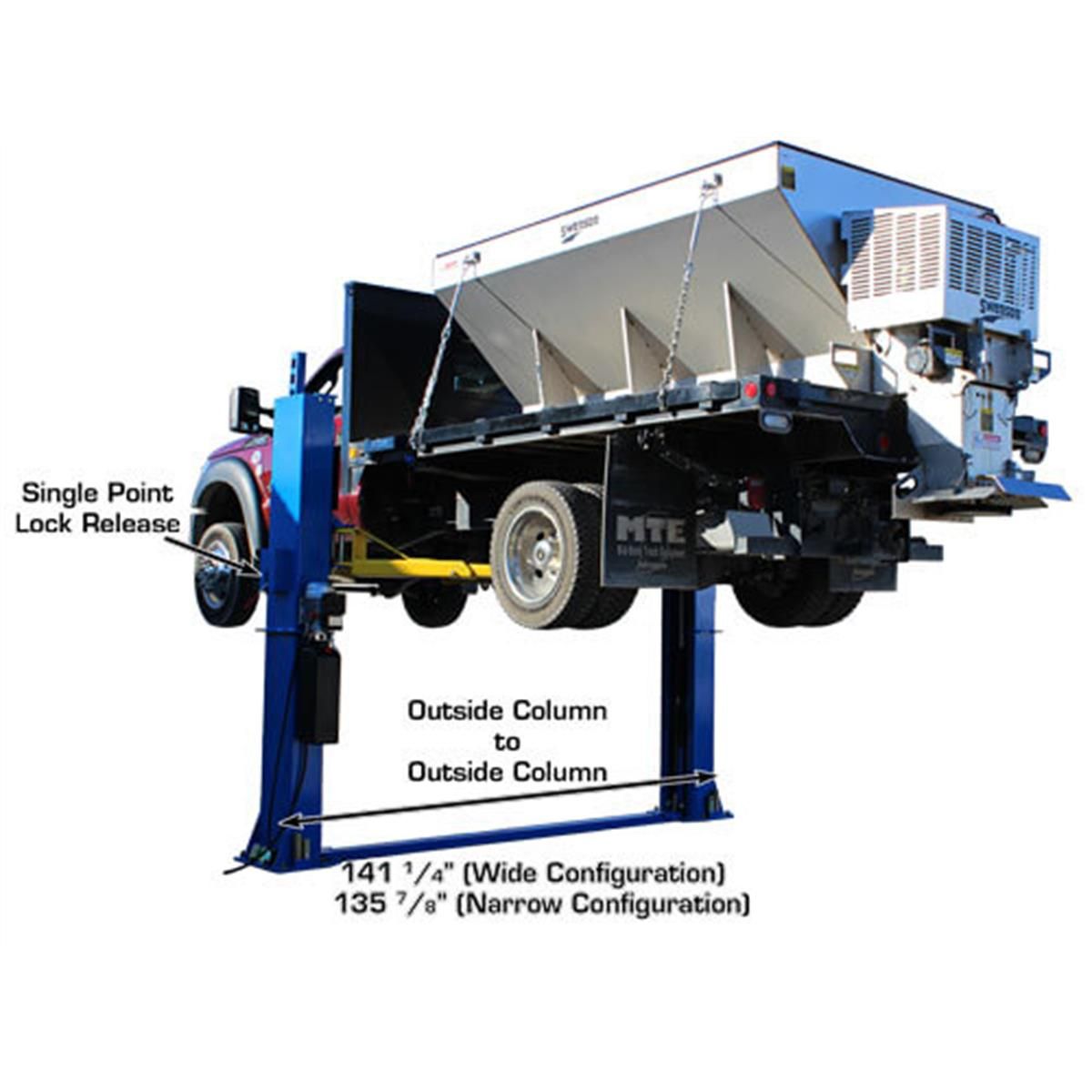

Outside Column to Outside Column: 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4″)

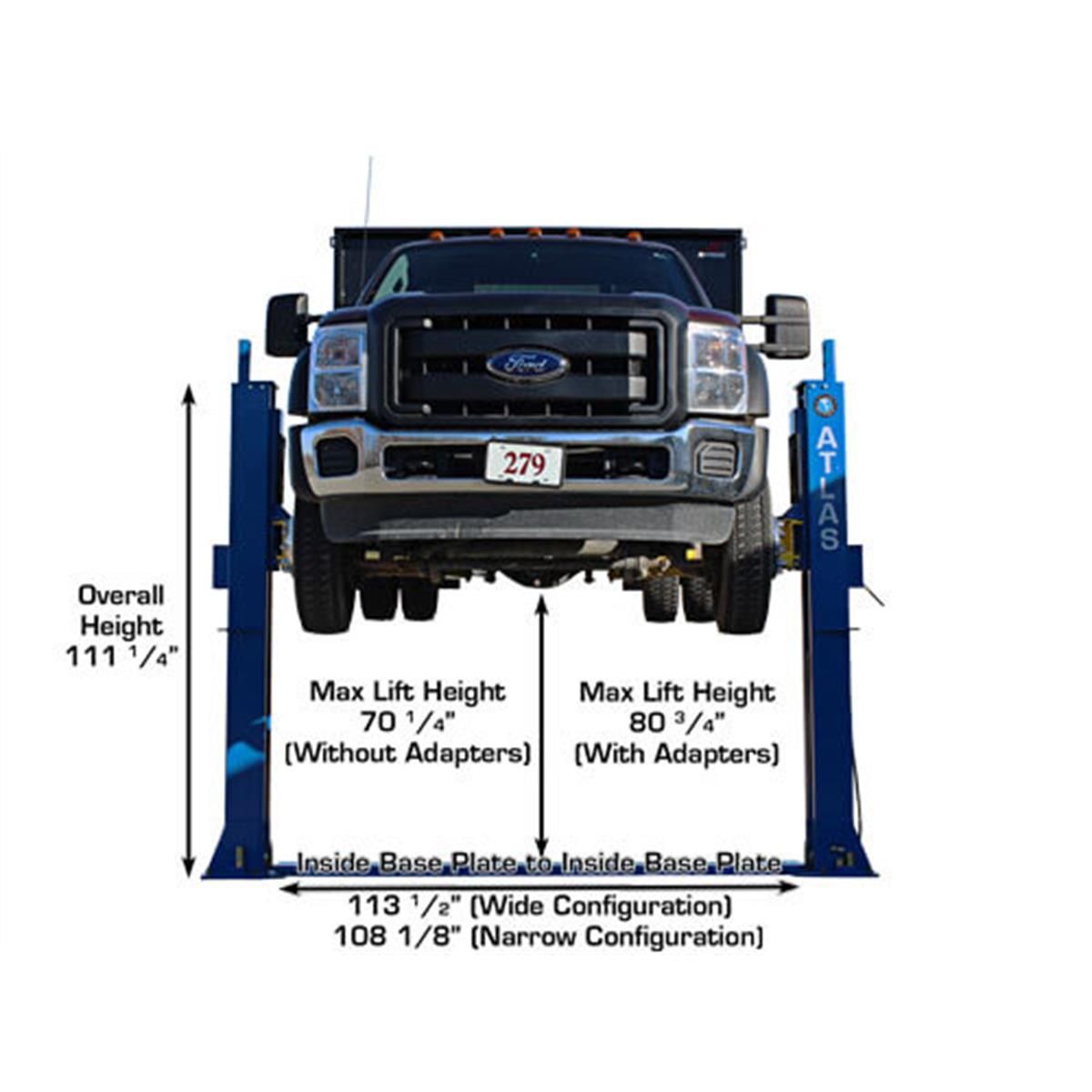

Maximum Lift Height (Without Adapters): 77 1/2″

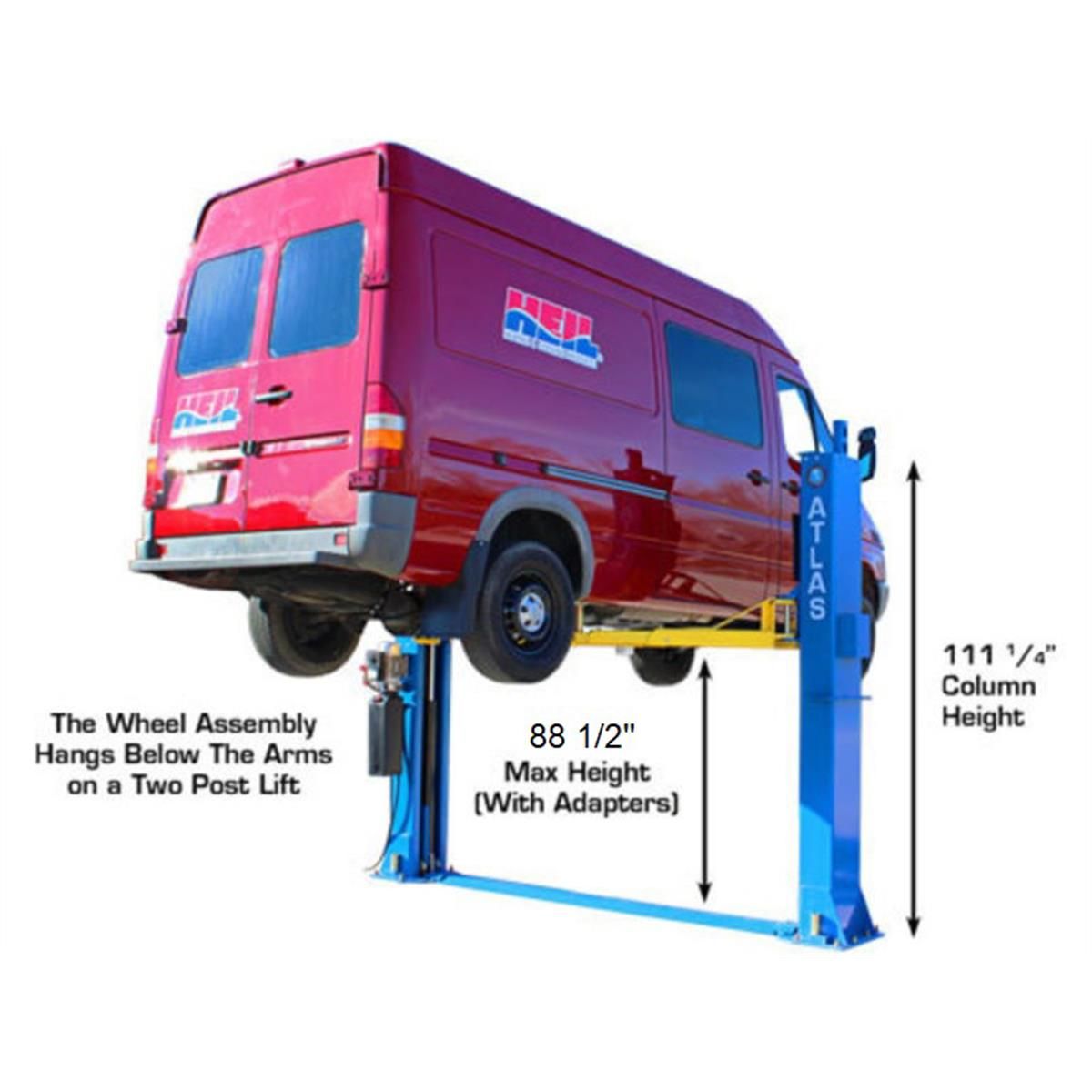

Maximum Lift Height (With Adapters): 88 1/2″
Minimum Arm Height: 4″
Inside Column: 118 1/8″ (9′ 10 1/8″) or 123 1/2″ (10′ 3 1/2″)
Drive Thru: 103 5/8″ (8′ 7 5/8″) or 109″ (9′ 1″)
Column Size: 8 3/4″ x 14″
Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 2,130 LBS.
Adapter Heights: 4 Each 2″, 3″, 6″
