K Tool KTIXD63505 Telescoping Manual Transmission Jack

SKU: KTIXD63505

Call for Price

Add to wishlist Add to compare

Description

Features

Under Hoist Removal, Installation, and Moving of Transmissions and Transfer Cases
Hydraulic Double-Pump Provides Fast Lifting Under No Load
Overload Valve Prevents Jack Used Beyond Capacity
Speed Limiting Valve Ensures Safe Descent - Not Greater than 1" Per Second
Pump Cover Keeps Dust and Dirt Out of Hydraulics for Longer Life
Grease Fitting for Easy Maintenance
Deluxe Saddle with 2 Angle Adjustments Fore/Aft and Side to Side
59" Tie Down Chain to Secure Load
Four Heavy-Duty 4" Steel Swivel Casters, 2 Locking
Meets or Exceed ASME PASE 2019 Standards

Specifications

Capacity: 1,000 lbs.
Max Height: 76.4"
Min Height: 37"
Travel: 39"
Weight: 185 lbs.
Warranty: 1 Year

Description

Description

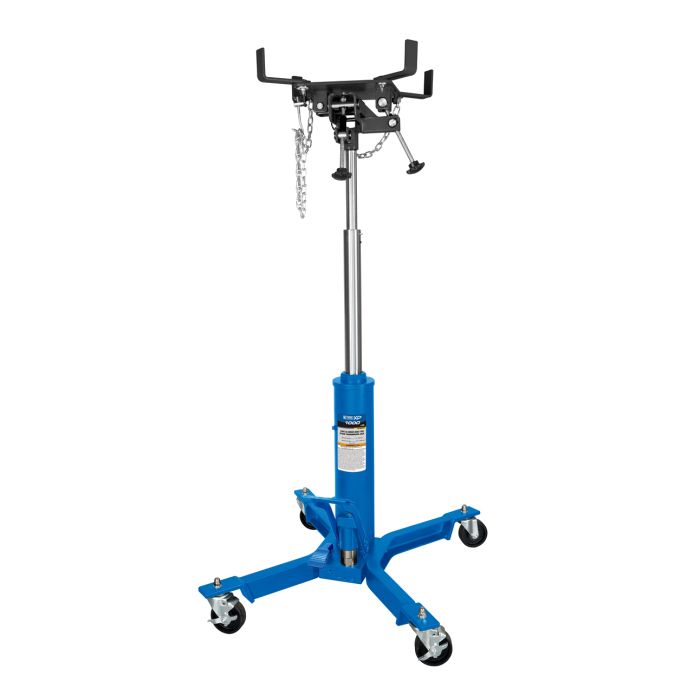

K Tool KTIXD63505 Telescoping Manual Transmission Jack
1,000 lbs. Capacity Under Hoist Two-Stage Double Pump
The K Tool KTIXD63505 Telescoping Manual Transmission Jack features a two stage telescopic design for maximum height. The large base provides balance while in use and helps increase safety. Convenient release foot pedal allows for smooth operation and ease of control while lowering transmissions. Multi-position saddle adjusts to multiple angles. Safety chains secure the workload to prevent injury.
